SWISSBIT SFPC010GM1EC1TOI5E51PSTD NVMe SSD

The Swissbit N-26m2 SSD is an industrial M.2 NVMe drive supporting PCIe 3.1 interface with capacities from 5GB to 160GB. It features robust 3D TLC NAND, high endurance, and data integrity with AES encryption and E2E protection. Designed for embedded applications, it operates in temperatures -40°C to 85°C, has low power consumption, and offers high read/write performance up to 1,773 MB/s sequential read. Its compact form factor includes mechanical dimensions of 30/42/80 mm x 22 mm x 2.63 mm, suitable for industrial and enterprise use with high reliability and advanced firmware features.

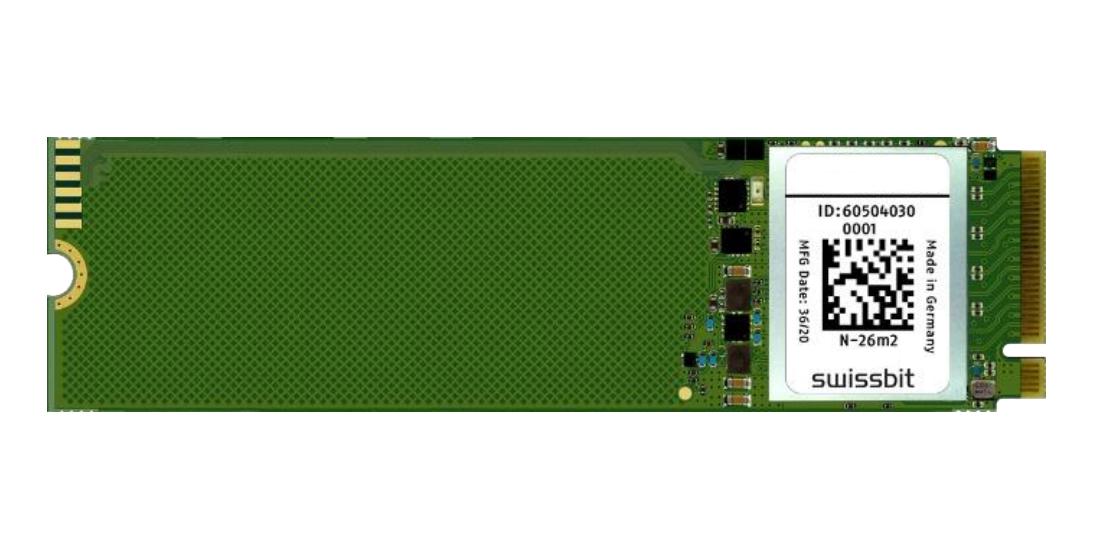

Swissbit Series N-26m2 NVMe SSD: SFPC010GM1EC1TOI5E51PSTD
View SFPC010GM1EC1TOI5E51PSTDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFPC010GM1EC1TO-I-5E-51P-STD
Stock:8
Inv Date:06-15-2026
Price: Unit price: $370.94
Buy/RFQ:
Source:Mouser Electronics
Part No:SFPC010GM1EC1TO-I-5E-51P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $351.79
Buy/RFQ:

SWISSBIT SFPC010GM1EC1TOI5E51PSTD NVMe SSD Specifications:

  • Capacities: 5GB, 10GB, 20GB, 40GB, 80GB, 160GB
  • Form Factor: PCI Express M.2 2230/2242/2280
  • Interface: PCIe Gen3 x2, 4 Lanes
  • Compliance: PCIe 3.1, NVMe 1.3
  • Sequential Read: up to 1,773 MB/s
  • Sequential Write: up to 827 MB/s
  • Random Read: up to 140,000 IOPS
  • Random Write: up to 131,000 IOPS
  • Operating Temperatures: -40°C to 85°C
  • Storage Temperatures: -40°C to 85°C
  • Supply Voltage: 3.3V, 1.8V, 0.9V
  • Dimensions: 30/42/80 mm x 22 mm x 2.63 mm
  • Power States: P0 to P5, Thermal Throttling
  • MTBF: > 2,000,000 hours
  • Data Retention: 10 Years at 40°C
  • Endurance: up to 1550 TBW for 80GB capacity
  • Compliance: RoHS, REACH, WEEE, EMC
  • Connector: M key 75-pin edge connector with PCIe support
  • ECC: Hardware ECC correcting up to 120 bits per 1KB page
  • Additional Features: Encryption, End-to-End Data Protection, Wear Leveling

Buy the Swissbit Series N-26m2 NVMe SSD: SFPC010GM1EC1TOI5E51PSTD

Secure your data and enhance system performance by purchasing the Swissbit N-26m2 NVMe SSD online today. With capacities up to 160GB, high endurance, AES encryption, and operating temperatures from -40°C to 85°C, this industrial-grade M.2 SSD is ideal for embedded and enterprise applications. Its PCIe Gen3 x2 interface delivers sequential read speeds up to 1,773 MB/s, ensuring fast data transfer. Support for firmware updates, ECC correction, and end-to-end data protection makes it a dependable choice for demanding environments. Order now for immediate supply and reliable operation.

Order your Swissbit Series N-26m2 SSD 10GB capacity today and give your embedded systems the reliable, high-performance storage they need.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC010GM1EC1TOI5E51PSTD?

You can click on the BUY or RFQ button to purchase SFPC010GM1EC1TOI5E51PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC010GM1EC1TOI5E51PSTD?

You can download the SFPC010GM1EC1TOI5E51PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC010GM1EC1TOI5E51PSTD?

SWISSBIT
