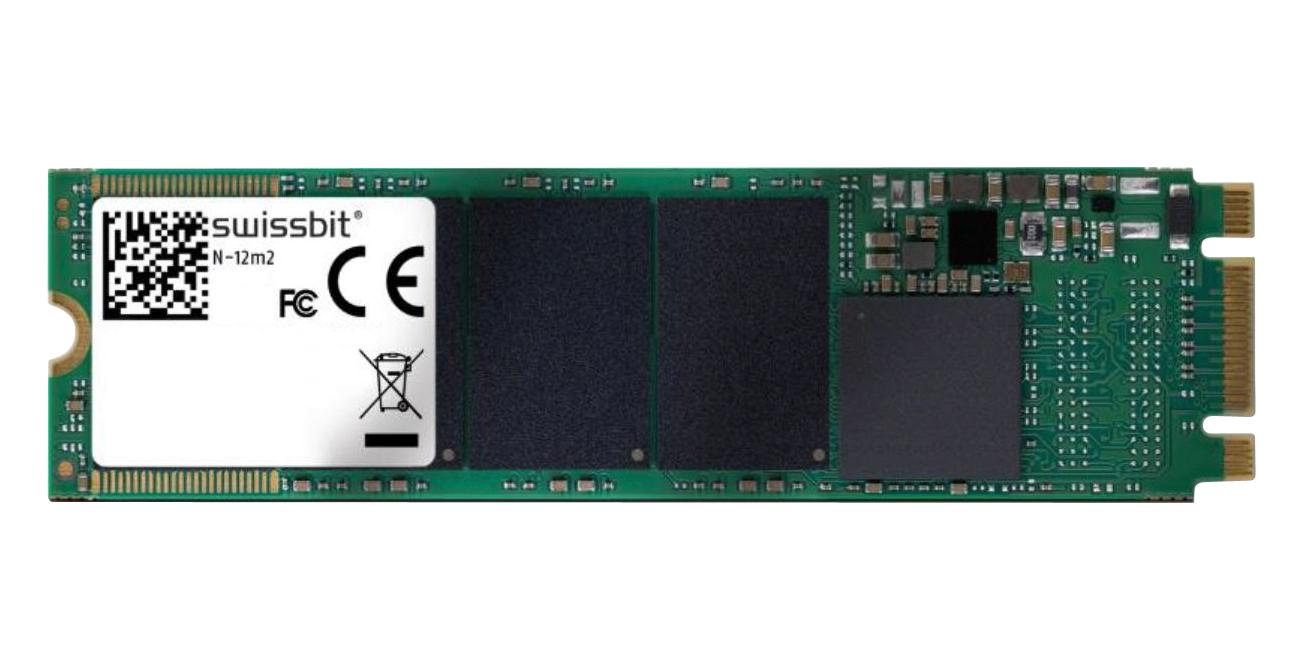

SWISSBIT SFPC060GM1AJ1TOI6B526STD Industrial SSD

The Swissbit N-12m2 2280 Series is a high-performance PCI Express M.2 SSD designed for industrial and enterprise applications. It features capacities ranging from 30 GB to 240 GB, with support for PCIe 3.1, NVMe 1.2, and Gen3 x 2 lanes for fast data transfer. The drive operates reliably in temperatures from -40°C to 85°C, ensuring durability in industrial environments. With advanced features like LDPC ECC, end-to-end data protection, and active power management, it offers excellent endurance, data security, and long-term data retention, making it ideal for mission-critical storage solutions.

Swissbit SFPC060GM1AJ1TOI6B526STD U+2013 Reliable Industrial SSD for Data Centers
View SFPC060GM1AJ1TOI6B526STDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFPC060GM1AJ1TO-I-6B-526-STD
Stock:5
Inv Date:06-15-2026
Price: Unit price: $111.03
Buy/RFQ:
Source:DigiKey
Part No:SFPC060GM1AJ1TO-I-6B-526-STD
Stock:0
Inv Date:06-15-2026
Price: Unit price: $87.86
Buy/RFQ:
Source:Mouser Electronics
Part No:SFPC060GM1AJ1TO-I-6B-526-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC060GM1AJ1TOI6B526STD Industrial SSD Specifications:

  • Form Factor: PCI Express M.2 2280 (80 mm x 22 mm x 2.23 mm)
  • Capacities: 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes
  • Interface: Gen3 x 2 Lanes
  • Compliance: PCI Express Specification Revision 3.1
  • Supported Command Sets: NVMe 1.2
  • Sequential Read: Up to 1,520 MBytes/s
  • Random Read 4K: Up to 179,500 IOPS
  • Sequential Write: Up to 925 MBytes/s
  • Random Write 4K: Up to 174,100 IOPS
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature Range: -40°C to 85°C
  • Operating Voltage: 3.3V ± 5%
  • Data Retention: 10 Years at DVD start, 1 Year at DVD end
  • Endurance: TBW >300 (Client), >75 (Enterprise)
  • Shock/Vibration Resistance: 1500 g / 50 g
  • Technology: 3D TLC NAND Flash, LDPC ECC
  • MTBF: Over 2,000,000 hours
  • Data Reliability: <1 non-recoverable error per 10^15 bits read
  • Additional Features: Wear Leveling, Power Fail Protection, End-to-End Data Protection

Buy the Swissbit SFPC060GM1AJ1TOI6B526STD U+2013 Reliable Industrial SSD for Data Centers

Purchase the Swissbit industrial SSD today for reliable high-speed storage in demanding environments. Designed with PCIe 3.1 and NVMe support, it offers exceptional data transfer speeds up to 1520 MB/sec and withstands extreme temperatures from -40°C to 85°C. Its durability includes 10 years data retention, high endurance, and shock resistance, making it perfect for critical industrial, enterprise, and computing applications. Secure your data and ensure long-term performance by buying online now.

Get Swissbit SFPC060GM1AJ1TOI6B526STD today—built for industrial strength and long-lasting durability.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC060GM1AJ1TOI6B526STD?

You can click on the BUY or RFQ button to purchase SFPC060GM1AJ1TOI6B526STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC060GM1AJ1TOI6B526STD?

You can download the SFPC060GM1AJ1TOI6B526STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC060GM1AJ1TOI6B526STD?

SWISSBIT
