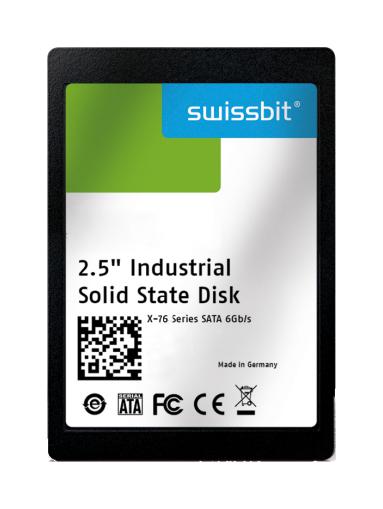

SWISSBIT SFSA020GS2AK1TOI6B22PSTD Industrial SSD

The Swissbit X-76 Series 2.5-inch SATA SSD offers capacities from 10GB to 320GB, utilizing Triple-Level Cell (TLC) 3D NAND flash technology managed with pseudo SLC mode for enhanced endurance and performance. Compatible with SATA Gen3 (6 Gbps) and backward compatible with older standards, it delivers sequential read speeds up to 560MB/s and write speeds up to 480MB/s. Features include Data Care Management, power fail protection, advanced wear leveling, and optional AES-256 encryption and TCG Opal 2.0 security. Rugged, industrial-grade design ensures high reliability in embedded systems.

Buy Swissbit SSD Part Number SFSA020GS2AK1TOI6B22PSTD Online
View SFSA020GS2AK1TOI6B22PSTDDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:SFSA020GS2AK1TO-I-6B-22P-STD
Stock:5
Inv Date:06-15-2026
Price: Unit price: $187.47
Buy/RFQ:
Source:DigiKey
Part No:SFSA020GS2AK1TO-I-6B-22P-STD
Stock:1
Inv Date:06-15-2026
Price: Unit price: $107.87
Buy/RFQ:
Source:Mouser Electronics
Part No:SFSA020GS2AK1TO-I-6B-22P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $134.82
Buy/RFQ:

SWISSBIT SFSA020GS2AK1TOI6B22PSTD Industrial SSD Specifications:

  • Form Factor: 2.5 inch SATA SSD (70 mm x 100 mm x 7 mm)
  • Capacities: 10GB, 20GB, 40GB, 80GB, 160GB, 320GB
  • Interface: SATA Gen3 6 Gbps, backward compatible with Gen2 and Gen1
  • Sequential Read Speed: Up to 560MB/s
  • Sequential Write Speed: Up to 480MB/s
  • Random Read 4K: Up to 74,000 IOPS
  • Random Write 4K: Up to 84,900 IOPS
  • Operating Temperature Range: -40°C to 85°C
  • Power Consumption: Max read 2.8W, write 2.9W
  • Data Retention: 10 years at start, 1 year at end of life
  • Endurance: TBW over 10,520 TB for 320GB capacity
  • Vibration/Shock: 1500g/50g
  • Regulatory: RoHS, REACh, EMC, WEEE compliant
  • Physical Dimensions: Length 100.3 mm, Width 69.9 mm, Thickness 7.0 mm
  • Weight: Less than a specified maximum (not exact)

Buy the Buy Swissbit SSD Part Number SFSA020GS2AK1TOI6B22PSTD Online

Purchase the Swissbit Series SFSA020GS2AK1TOI6B22PSTD industrial SSD online today and benefit from fast shipping, secure checkout, and expert support. Designed for demanding embedded and industrial applications, this high-capacity SATA drive delivers exceptional performance with up to 560MB/s read and 480MB/s write speeds. Featuring power fail protection, wear leveling, and optional AES256 encryption, it ensures data integrity and long-term reliability. Upgrade your system with a proven solution that combines rugged durability and advanced technology for maximum endurance and data security.

Order your Swissbit Series SFSA020GS2AK1TOI6B22PSTD industrial SSD today and enhance your embedded system's performance with reliable, high-endurance storage.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA020GS2AK1TOI6B22PSTD?

You can click on the BUY or RFQ button to purchase SFSA020GS2AK1TOI6B22PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA020GS2AK1TOI6B22PSTD?

You can download the SFSA020GS2AK1TOI6B22PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA020GS2AK1TOI6B22PSTD?

SWISSBIT
