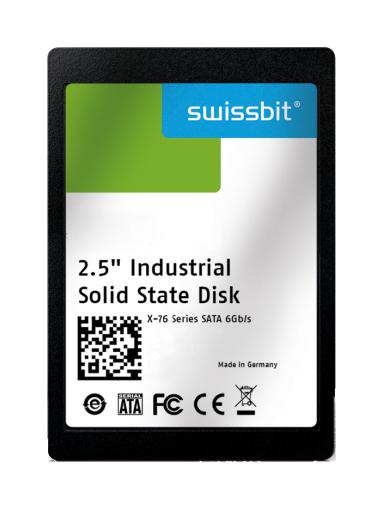

SWISSBIT SFSA080GS2AK4TOI6B22PSTD Industrial SATA SSD

The Swissbit X-76 Series 2.5-inch industrial SATA SSD offers capacities from 10GB to 320GB, supporting SATA Gen3 6Gb/s interface for high-speed data transfer. Constructed with TLC 3D NAND in pSLC mode, it features advanced wear leveling, power fail protection, and supports security standards including AES256 encryption and TCG Opal 2.0. Designed for industrial and embedded applications, it operates within -40°C to 85°C temperature range, ensuring high reliability, endurance, and data integrity with a MTBF over 2 million hours. Rugged design includes 7-pin SATA and 15-pin power connectors with dimensions of approximately 70mm x 100mm x 7mm.

Buy Swissbit SSD Part Number SFSA080GS2AK4TO now and experience unmatched reliability and high-performance industrial storage.
View SFSA080GS2AK4TOI6B22PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA080GS2AK4TO-I-6B-22P-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $566.04
Buy/RFQ:

SWISSBIT SFSA080GS2AK4TOI6B22PSTD Industrial SATA SSD Specifications:

  • Form Factor: 2.5-inch SATA SSD
  • Capacities: 10GB, 20GB, 40GB, 80GB, 160GB, 320GB
  • Interface: SATA Gen3 (6 Gbit/s), backward compatible with Gen2 and Gen1
  • Performance: Sequential Read up to 560MB/s, Write up to 480MB/s, Random Read 74,000 IOPS, Random Write 84,900 IOPS
  • Controller: High-performance 32-bit RISC CPU with LDPC ECC correction up to 165 bits per 1KByte
  • NAND Flash: TLC 3D NAND, pseudo SLC mode for endurance and performance
  • Power Consumption: Read (Active) 2.8W, Write (Active) 2.9W, Idle 550mW
  • Operating Temperature: -40°C to 85°C; Storage Temperature: -40°C to 85°C
  • Dimensions: approximately 70mm x 100mm x 7mm
  • MTBF: > 2,000,000 hours; Data Retention: 10 years at 0°C, 1 year at lifespan end
  • Security: AES256 encryption, TCG Opal 2.0, ATA security features
  • Compliance: RoHS-6, EMC, WEEE, REACh, UL, CE
  • Shock & Vibration: 1500 g / 50 g, conforming to industrial standards
  • Endurance: TBW up to 10,520 at maximum capacity

Buy the Buy Swissbit SSD Part Number SFSA080GS2AK4TO now and experience unmatched reliability and high-performance industrial storage.

Purchase the Swissbit SFSA080GS2AK4TO industrial SATA SSD online today to benefit from robust data security, high endurance, and reliable operation in extreme temperatures. Designed for demanding embedded and industrial applications, this SSD features a SATA Gen3 interface for fast data transfer, power fail protection, and secure encryption options. Its rugged build, supported by extensive specifications including up to 560MB/s sequential read, 480MB/s write, and 84,900 IOPS, ensures optimal performance, durability, and data integrity for mission-critical systems.

Buy Swissbit SFSA080GS2AK4TO now and enjoy durable, high-endurance SSD with advanced security features designed for industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA080GS2AK4TOI6B22PSTD?

You can click on the BUY or RFQ button to purchase SFSA080GS2AK4TOI6B22PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA080GS2AK4TOI6B22PSTD?

You can download the SFSA080GS2AK4TOI6B22PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA080GS2AK4TOI6B22PSTD?

SWISSBIT
