SWISSBIT SFSD0512N1BM1TOIME2A1STD Industrial microSDHC Memory Card

The Swissbit S-450u Series industrial microSDHC memory card offers ultra high speed and high reliability designed for demanding industrial environments. Fully compliant with SD specification 3.0 and Micro SD Addendum 4.00, it supports SD UHS-I, high speed, and SD2.0 SDHC backward compatibility, making it ideal for long-term data retention, high read access, and wear leveling applications. With features like patented power-off reliability technology, wear leveling, ECC, and extended temperature ranges from -40°C to 85°C, this rugged, high endurance card ensures exceptional performance, durability, and data integrity suitable for industrial, medical, navigation, and infotainment applications.

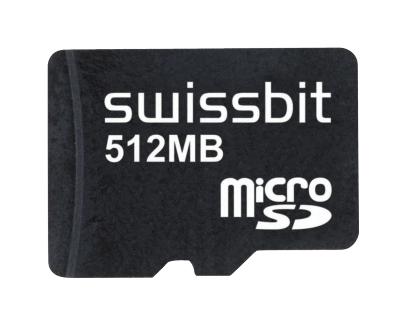

Swissbit Series S-450u Industrial microSDHC: SFSD0512N1BM1TOIME2A1STD
View SFSD0512N1BM1TOIME2A1STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSD0512N1BM1TO-I-ME-2A1-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFSD0512N1BM1TOIME2A1STD Industrial microSDHC Memory Card Specifications:

  • Form factor: MICRO SD Memory Card, 15.0mm x 1.0mm x 0.7mm
  • Capacity: 512MB to 8GBYTE
  • Speed modes: SD ultra high speed mode, SD high speed, UHS-I DDR and SDR, up to 24MB/s
  • Voltage: 2.7 to 3.6V operating voltage
  • Temperature range: -40°C to 85°C, extended industrial temperature
  • Endurance: Up to 20,000 insertions/removals
  • Features: Wear Leveling, Power-off reliability, Read Disturb Management, Data Care, Near Miss ECC
  • Compliance: SD 3.0, Micro SD Addendum 4.00, AEC-Q100 qualified
  • Reliability: SLC Flash for industrial longevity, optimized for read-intensive applications
  • Physical: Standard Micro SD form factor, rugged design with dust, water, and ESD proof SIP process

Buy the Swissbit Series S-450u Industrial microSDHC: SFSD0512N1BM1TOIME2A1STD

Discover the Swissbit Series S-450u industrial microSDHC card, designed for durability and high performance in extreme conditions. Featuring advanced wear leveling, ECC, and power-off reliability, it guarantees secure, long-lasting data storage for industrial, medical, navigation, and infotainment systems. With a wide operating temperature range from -40°C to 85°C, it withstands harsh environments. Its high endurance technology ensures long-term reliability and data integrity, making it an ideal choice for critical applications requiring continuous high-speed data access and resilient operation in rugged settings.

Order your Swissbit Series S-450u industrial microSDHC today and ensure reliable high-speed data storage for your demanding industrial applications.

Frequently Asked Questions

Where can I buy SWISSBIT SFSD0512N1BM1TOIME2A1STD?

You can click on the BUY or RFQ button to purchase SFSD0512N1BM1TOIME2A1STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSD0512N1BM1TOIME2A1STD?

You can download the SFSD0512N1BM1TOIME2A1STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSD0512N1BM1TOIME2A1STD?

SWISSBIT
