SAMTEC ASP12779701 FMC Connector

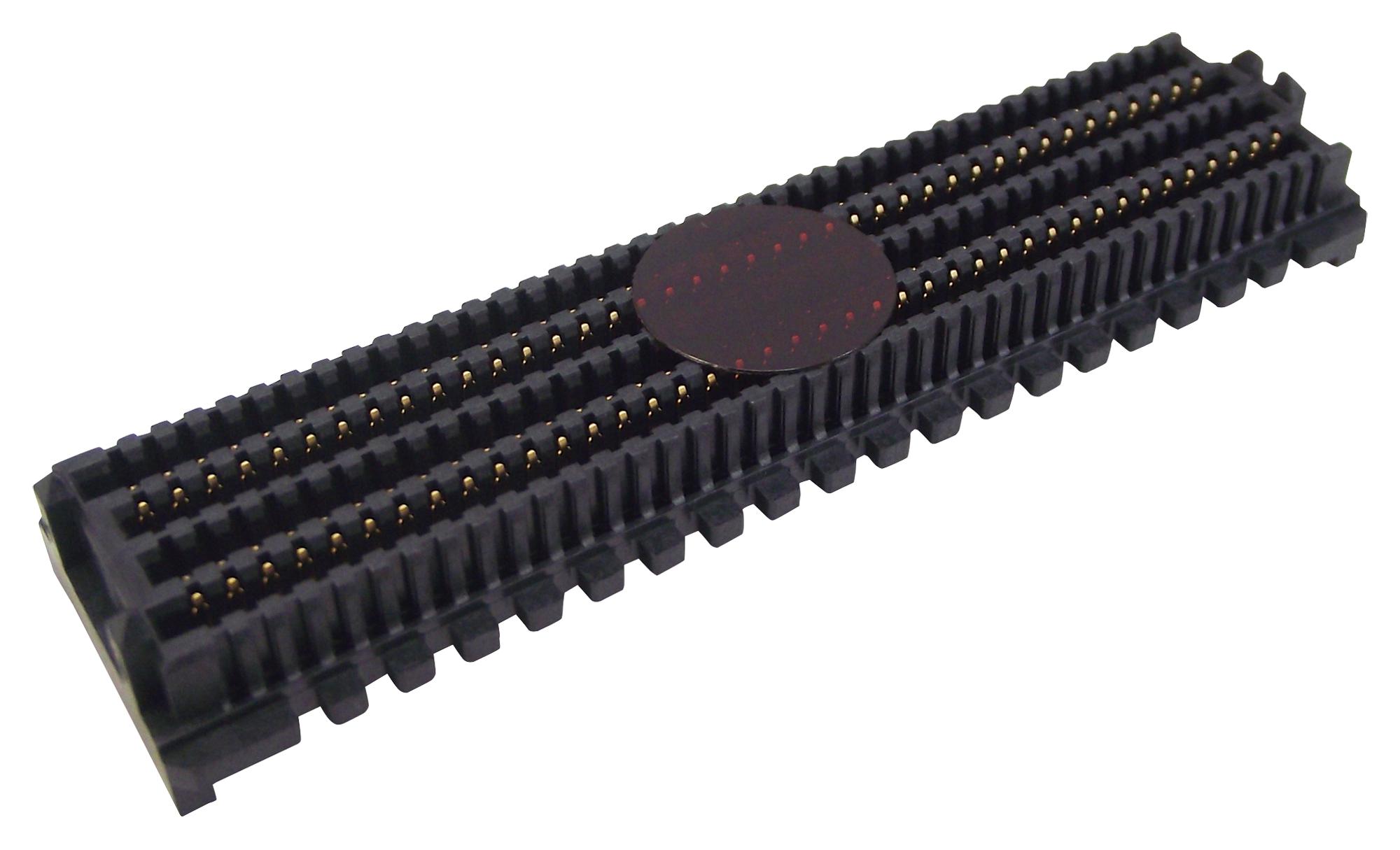

The ASP-127797-01 is a 160-pole, 4-row, 1.27mm pitch male FMC connector featuring gold-plated copper alloy contacts. It conforms to the VITA 57 standard for Field Programmable Mezzanine Cards (FMC), providing a mechanical interface for I/O mezzanine modules. The connector has a 10mm stack height, uses tin-lead solder, and is designed for low pin count applications. It is suitable for industrial environments, ensuring reliable electrical connection and mechanical stability in demanding applications.
SAMTEC ASP12779701 FMC Connector Specifications:
- Number of Poles: 160
- Rows: 4
- Pitch: 1.27mm
- Contact Material: Copper alloy with gold plating
- Solder Type: Tin-lead
- Stack Height: 10mm
- Application: Low pin count, industrial environments
- Standard: VITA 57
- Use: Mechanical interface for I/O mezzanine modules
- Conformance: RoHS compliant
Buy the Buy Samtec FMC Connector Part Number ASP12779701 Online
Secure your industrial connectivity requirements with the Samtec FMC Connector. Featuring 160 poles, 4 rows, and a 1.27mm pitch, this connector ensures robust electrical performance. Gold-plated copper alloy contacts provide excellent conductivity, while tin-lead solder enhances solderability. Its 10mm stack height offers a compact design suitable for low pin count applications and demanding environments. Conforming to VITA 57 standards, this module offers mechanical strength, durability, and reliable I/O interface, making it an ideal choice for diverse industrial and embedded systems.
Buy Samtec ASP12779701 now and experience unmatched reliability and performance in industrial connector solutions.
Frequently Asked Questions
Where can I buy SAMTEC ASP12779701?
You can click on the BUY or RFQ button to purchase ASP12779701 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ASP12779701?
You can download the ASP12779701 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ASP12779701?
SAMTEC
