SAMTEC ASP13448701 Terminal Array
The ASP-134487-01 is a 0.050 pitch terminal array assembly designed for reliable interconnections in electronic and industrial applications. It features a black LCP contact area with gold over nickel plating for corrosion resistance, and a high-current capacity suitable for sensitive PCB layouts. The connector includes components like copper alloy, leaded solder, and polyimide film for durability and stable electrical performance. Packaged on tape and reel, it complies with UL 94VO standards, ensuring safety and quality in manufacturing environments. Ideal for compact, high-density electronics assembly, offering excellent electrical conductivity and mechanical stability.
SAMTEC ASP13448701 Terminal Array Specifications:
- Material: LCP with gold over nickel plating
- Contact Area: 000030 GOLD OVER 000050 NICKEL
- Connector Outline: 0.050 pitch terminal array
- Component Dimensions: various detailed measurements in inches including 2.196, 1.950, and 0.035; tolerance ±.01
- Packaging: Tape and reel for automated assembly
- Standards: UL 94 VO approved, RoHS compliant
- Temperature Range: -55°C to +105°C
- Number of Components: 400 copper alloy / leaded solder, 1000 polyimide film (Kapton), 1000 conductive polymer
- Plating Thickness: Gold 0.0030, Nickel 0.0050, Tin 0.0050
- Stack Dimensions: symmetric about centerline, detailed in drawings
- Application: Electronic modules, PCB interconnects, industrial equipment
- Assembly: Includes recommended stencil layout, reeling packaging, and critical dimension measurements

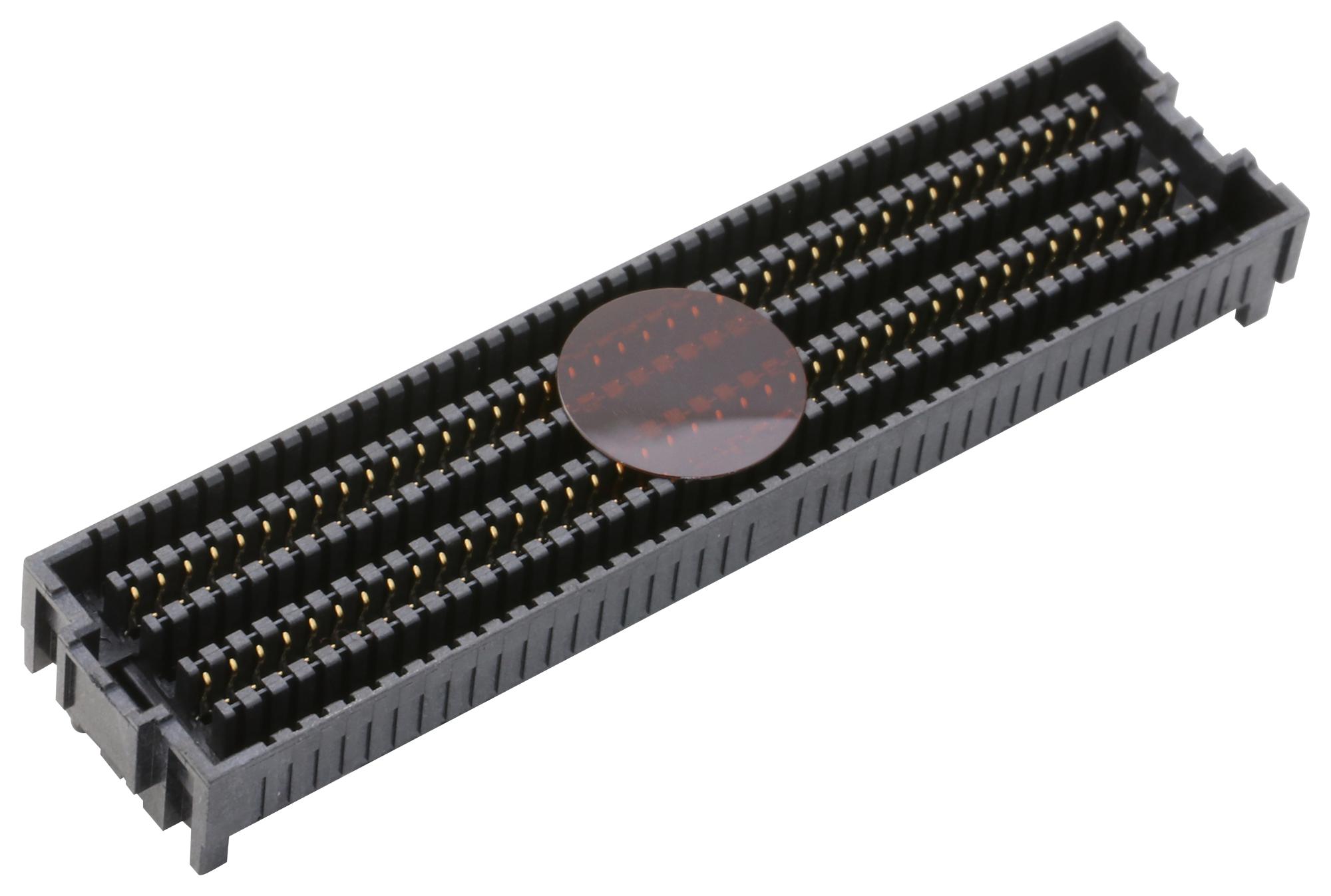

Buy the EC BRAY ASP13448701 – Reliable Terminal Array for Industrial Applications
Order the EC BRAY ASP-134487-01 terminal array connector today and ensure reliable PCB connections with high current capacity and corrosion-resistant plating. This 0.050 pitch connector features gold over nickel plating, tape and reel packaging for easy automation, and complies with UL 94VO safety standards. Designed for compact, high-density electronic assemblies, it guarantees mechanical stability and excellent electrical conductivity. Perfect for industrial equipment, electronic modules, and PCB interconnects, providing durable performance and consistent quality. Purchase now for fast delivery and seamless integration into your projects.
Get EC BRAY ASP-134487-01 today—built for precision, high reliability, and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC ASP13448701?
You can click on the BUY or RFQ button to purchase ASP13448701 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ASP13448701?
You can download the ASP13448701 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ASP13448701?
SAMTEC
