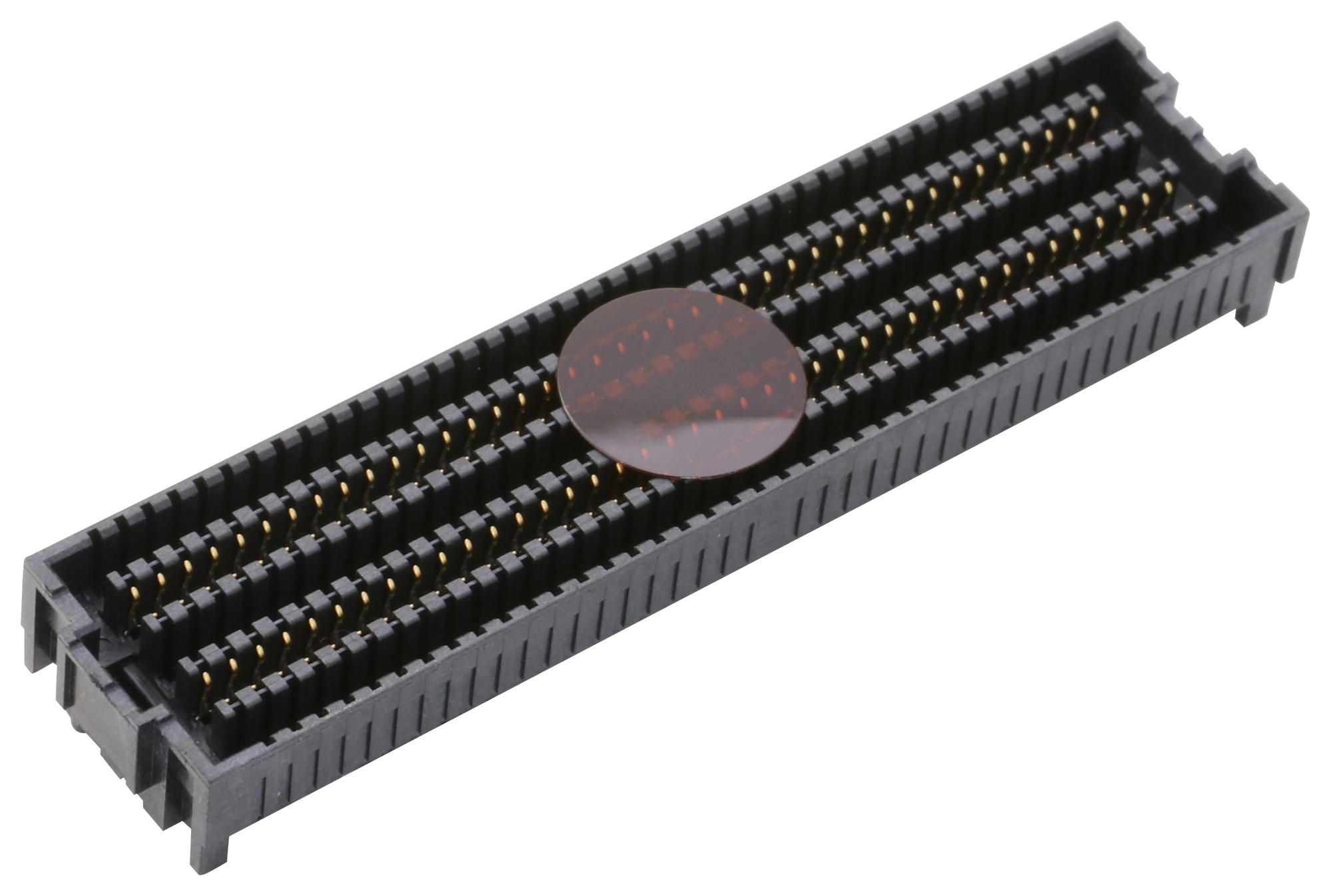

SAMTEC ASP14842201 High Speed Socket Connector
The ERF8 series are rugged high-speed socket connectors designed for reliable high-frequency signals and extended lifespan in PCB applications. They feature black LCP insulators, BeCu contacts rated for 2.2 A per pin, and a temperature range from -55°C to +125°C. Suitable for high-speed data transmission up to 24 Gbps, these connectors support SMT lead coplanarity, low insertion loss, and lead-free soldering. They are ideal for demanding electronic systems requiring robust, high-performance interconnects with precise stacking height options and long-term durability.
SAMTEC ASP14842201 High Speed Socket Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: BeCu
- Current Rating: 2.2 A per pin
- Voltage Rating: 200 VAC max
- Operating Temperature Range: -55°C to +125°C
- Stack Height: 7 mm
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004"), 0.12 mm (.005"), 0.15 mm (.006")
- Signal Frequency: Up to 24 Gbps, 10-12 GHz
- Insertion Loss: Rated at 34dB for specified conditions
- Number of Positions: Varied (17, 20, 23, 25, 35, more)
- Certifications and Testing: Certified, complete test data available at www.samtec.com
- Physical Dimensions: No. of positions vary with options, typical stack height 7 mm, length details vary depending on configuration
Buy the Samtec Series ERF8 High Speed Socket: ASP14842201
Purchase the high-speed socket connector online today and ensure your electronic projects benefit from top-grade performance, durability, and reliability. Designed for high-frequency signals up to 24 Gbps, it supports a wide range of PCB stack heights and offers excellent EMI performance. Easy to solder with lead-free compatibility, this connector is perfect for demanding applications requiring high data rates, robust physical design, and long-term endurance. Secure your stock now and get fast delivery for your project needs.
Order your Samtec Series ERF8 high-speed socket today and ensure your electronic systems benefit from reliable, high-frequency connectivity with extended lifespan.
Frequently Asked Questions
Where can I buy SAMTEC ASP14842201?
You can click on the BUY or RFQ button to purchase ASP14842201 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ASP14842201?
You can download the ASP14842201 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ASP14842201?
SAMTEC
