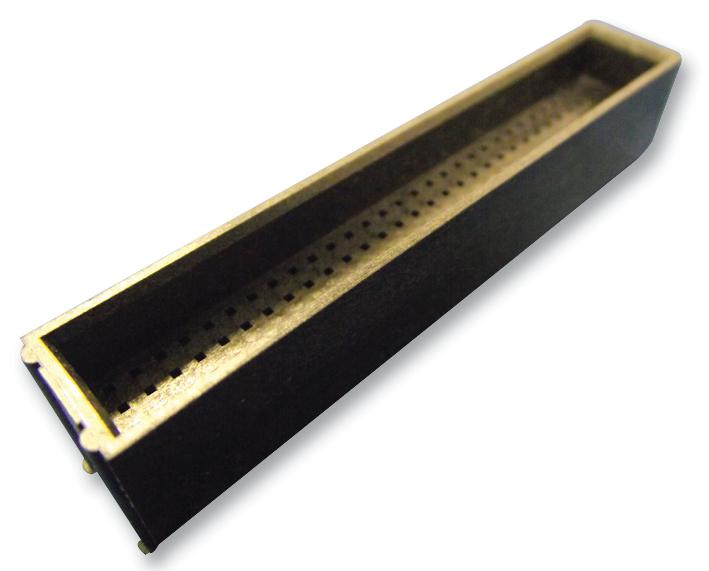

SAMTEC ATS30Q High-Temperature Connectors
The ATS30Q series features press-fit and paste-in hole connections designed for high-temperature applications with robust phosphor bronze contacts. Compatible with RoHS standards, these connectors have gold or tin plating over nickel and operate efficiently within -55°C to +125°C. Made from high-temp nylon or liquid crystal polymer insulators, they offer reliable performance with up to 100 cycles. Ideal for PCB assembly, they support both stack-through and non-stack-through configurations, providing versatile options for demanding electronic applications.
SAMTEC ATS30Q High-Temperature Connectors Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temp Nylon
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Sn over 50μ" Ni
- Operating Temperature Range: -55°C to +125°C
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (ESQT)
- Connection Types: Press-Fit and Paste-in Hole (PIH)
- Tail Lengths: Stack-through and Non-stack-through configurations
- Connector Series: ESQT-130, PTHF-130
- Compatible with: Row contact, various plating options, and custom lengths
Buy the Samtec ATS30Q – Reliable High-Temperature Connectors for Industrial Applications
Enhance your electronic assemblies with Samtec ATS30Q high-temperature connectors designed for demanding industrial environments. These connectors offer press-fit and paste-in hole options, gold or tin plating over nickel, and operation within -55°C to +125°C. Built with phosphor bronze contacts and high-temp insulators, they provide up to 100 cycles, RoHS compliance, and lead-free solderability. Ideal for stack and non-stack-through configurations, they support versatile PCB applications, ensuring reliable connections even in harsh conditions, and are available for quick online procurement.
Buy Samtec ATS30Q connectors now and experience unmatched reliability, high-temperature performance, and versatile PCB assembly options for industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC ATS30Q?
You can click on the BUY or RFQ button to purchase ATS30Q from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ATS30Q?
You can download the ATS30Q datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ATS30Q?
SAMTEC
