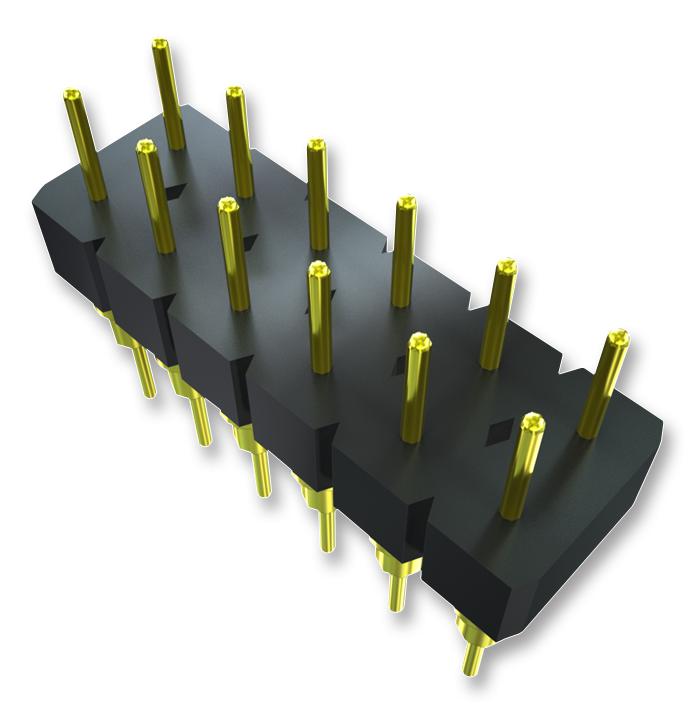

SAMTEC BBD105GB PCB Connector
The BBD105GB is a high-reliability, low-profile connector suitable for PCB applications, part of the BBD series. Featuring a black glass-filled polyester insulator, it ensures durability from -55°C to +125°C. Constructed with phosphor bronze or brass terminals plated with gold over nickel, it offers excellent electrical conductivity and corrosion resistance. Its compact design allows for board spacings of 3.89 mm when mated with SL series connectors, making it ideal for space-constrained assemblies in industrial and electronic systems. RoHS compliant and wave solderable, it ensures quality and reliability in demanding environments.
SAMTEC BBD105GB PCB Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50u (1.27 μm) Nickel
- Temperature Range: -55°C to +125°C
- Board Spacing: 3.89 mm (0.153 inch)
- Number of Pins: 4
- Pin Pitch: 2.54 mm (0.100 inch)
- RoHS Compliant
- Wave Solderable: Yes
- Design: Low profile, high-reliability separable connector
- Compatibility: Mates with series like SS, SD, HSS, SL, SDL, ESS, ESD
- Material for insulator options: Black High Temp Nylon, Liquid Crystal Polymer
- Dimensions: Length configurable, typical pin length approximately 4.0 mm
- Certifications: RoHS compliant
Buy the Samtec BBD105GB – Reliable PCB Connector for Industrial Applications
Purchase the Samtec BBD105GB connector online today to ensure reliable, space-saving connections in your electronic projects and industrial system designs. This low-profile connector is designed for PCB applications, featuring gold-plated terminals for enhanced conductivity and corrosion resistance. Its construction accommodates board spacings of 3.89 mm when mated with SL series, providing flexibility and durability in space-constrained environments. RoHS compliant and wave solderable, it guarantees quality and performance in demanding industrial, electronic, and automation applications. Buy now for efficient assembly and dependable operation.
Get Samtec BBD105GB today—built for precision and long-lasting durability in electronic system designs.
Frequently Asked Questions
Where can I buy SAMTEC BBD105GB?
You can click on the BUY or RFQ button to purchase BBD105GB from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBD105GB?
You can download the BBD105GB datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBD105GB?
SAMTEC
