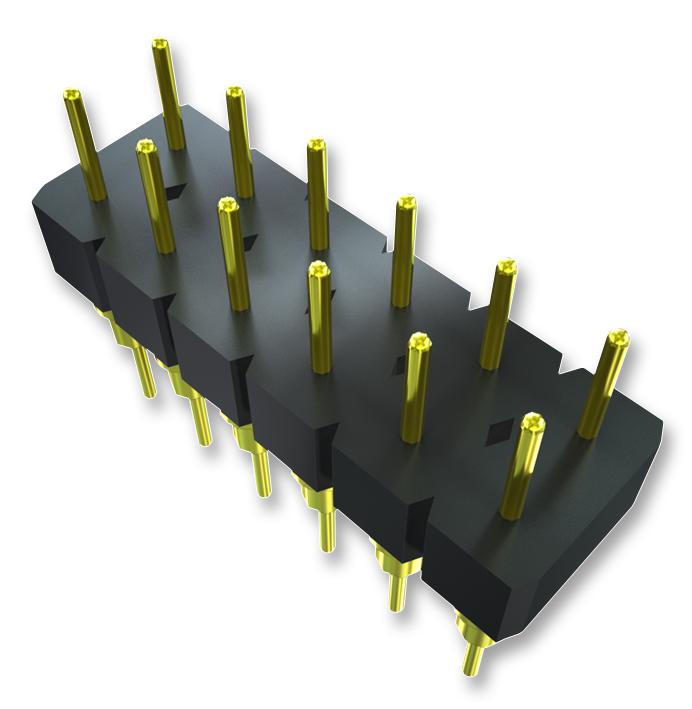

SAMTEC BBD107GA Low Profile Pluggable Connector
The BBD107GA is a high-quality, low-profile connector from the BBD series, designed for reliable, separable connections in electronic assemblies. Featuring black glass-filled polyester insulators and phosphor bronze or brass terminals with gold over 50 microinches plating, this connector supports RoHS compliance and withstands temperatures from -55°C to +125°C. Its compact design achieves board spacings of 3.89 mm when mated with the SL series, making it ideal for space-constrained applications requiring durable, reflow-solderable, RoHS-compliant connections. Suitable for various electronic, industrial, and automation systems, ensuring flexibility and high reliability.
SAMTEC BBD107GA Low Profile Pluggable Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, Black High Temp Nylon, Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50 microinches Ni
- Temperature Range: -55°C to +125°C
- Board Spacing: 3.89 mm (when mated with SL Series)
- Number of Pins: 4, 6, 8, 14, 28, 32, 50, 100 positions depending on style and option
- Lead-Free Solderable: Yes, compatible with wave solder and reflow processes
- RoHS Compliant: Yes
- Style Options: E, F (BHS styles only), available in various heights including 2.54 mm, 6.33 mm, 8.51 mm, 14.86 mm
- Physical Dimensions: Height ranges from approximately 1.78 mm to 14.86 mm depending on style, with widths from 1.27 mm to 6.33 mm
- Connector Material: Phosphor Bronze or Brass with gold plating for enhanced durability
- Standards: Meets RoHS requirements, RoHS compliant, with complete recognition scope available online
Buy the Samtec Series BBD Connector: BBD107GA
Purchase the Samtec BBD107GA connector today for your electronic assembly needs. This low-profile, RoHS-compliant connector features high-quality gold-plated terminals, supports reflow soldering, and withstands temperatures from -55°C to +125°C. Its space-efficient design achieves minimal board spacing, making it ideal for compact electronic devices. Whether for industrial automation or consumer electronics, this connector ensures reliable, durable connections. Buy online now to ensure a high-quality, flexible, and long-lasting connection solution for your projects.
Get Samtec BBD107GA today—built for precision, space-saving design, and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC BBD107GA?
You can click on the BUY or RFQ button to purchase BBD107GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBD107GA?
You can download the BBD107GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBD107GA?
SAMTEC
