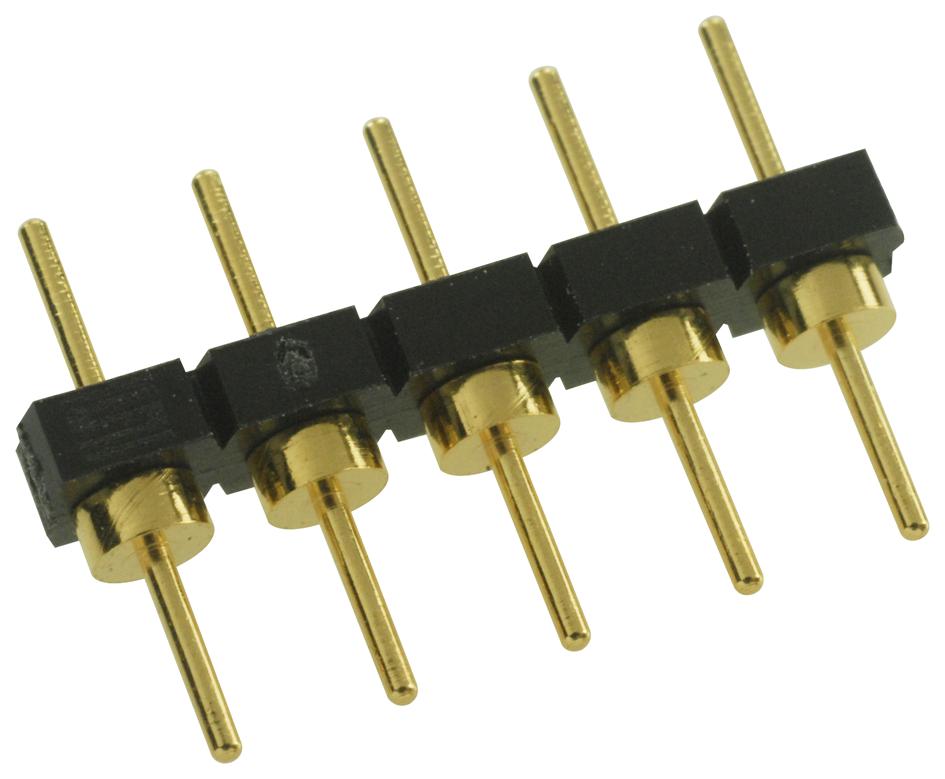

SAMTEC BBL105GF Separable Connector
The BBL105GF is a low-profile, flexible, and reliable connector designed for secure and separable connections with a compact 3.89 mm board spacing when mated with the SL Series. Constructed with durable materials like black glass-filled polyester, high-temp nylon, or liquid crystal polymer, it operates reliably between -55°C and +125°C. Featuring gold-plated phosphor bronze or brass terminals, this connector ensures RoHS compliance and solderability with wave or reflow methods, making it ideal for dense electronic applications requiring stable, high-quality connectivity.
SAMTEC BBL105GF Separable Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, High Temp Nylon, Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50µin Ni
- Temperature Range: -55°C to +125°C
- Board Spacing: 3.89 mm (0.153 inch)
- Number of Pins: 4
- Lead-Free Solderable: Yes, with wave or reflow soldering
- RoHS Compliant: Yes
- Dimensions: Length varies with configuration, typical body width 6.33 mm (0.210 inch) or 8.51 mm (0.335 inch), height 14.86 mm (0.585 inch)
Buy the Buy Samtec BBL105GF Part Number BBL105GF Online
Order the Samtec BBL105GF connector today and experience reliable, high-quality connectivity for your electronic projects. This low-profile connector features gold-plated terminals, operates efficiently between -55°C and +125°C, and is suitable for dense PCB assemblies. Its durable insulator materials ensure stability and longevity, with RoHS compliance and easy wave or reflow solderability for efficient assembly. Perfect for manufacturers and engineers seeking a trusted, Separable Connector designed for flexibility, high performance, and long-lasting durability in demanding environments.
Get Samtec BBL105GF connector today—designed for high-density, reliable connecting solutions with low profile and RoHS compliance.
Frequently Asked Questions
Where can I buy SAMTEC BBL105GF?
You can click on the BUY or RFQ button to purchase BBL105GF from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBL105GF?
You can download the BBL105GF datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBL105GF?
SAMTEC
