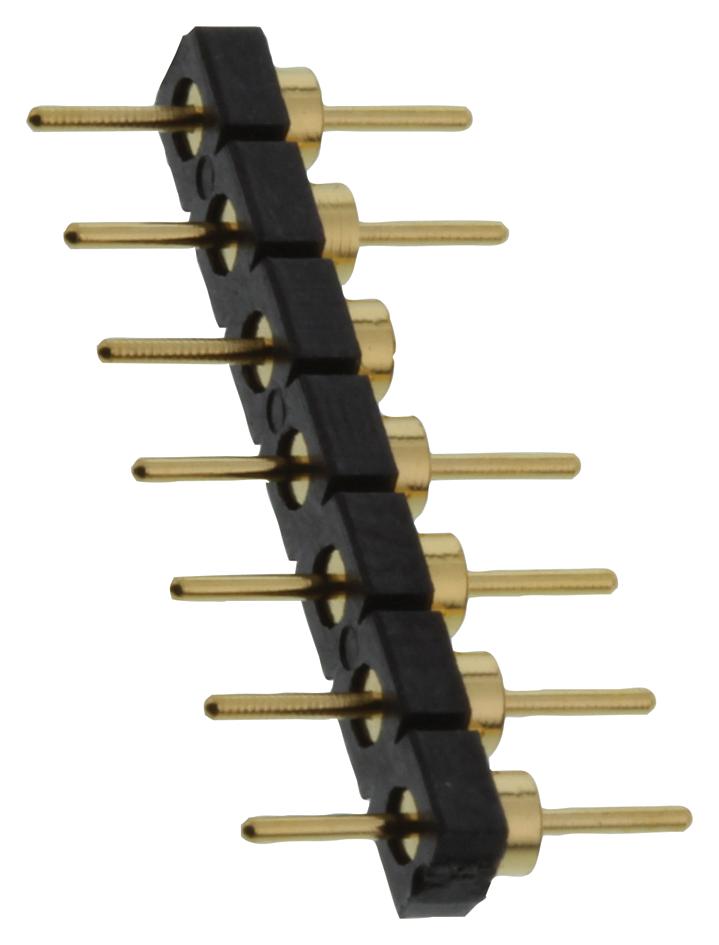

SAMTEC BBL107GF Separable Connector
The BBL Series interconnects series offers low-profile, high-temperature, RoHS-compliant connectors suitable for industrial applications requiring reliable, flexible, and separable connections. Made with insulators of black glass-filled polyester, high-temp nylon, or liquid crystal polymer, these connectors support temperatures from -55°C to +125°C. They feature phosphor bronze or brass terminal materials, with gold over 50 microns plating, and are compatible with wave or reflow soldering. Available in multiple lengths, pin counts, and styles, they deliver secure and flexible electrical connections for various electronic and industrial systems.
SAMTEC BBL107GF Separable Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, High Temp Nylon, Liquid Crystal Polymer
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50 microns (1.27 μm) Ni
- RoHS Compliant
- Lead-Free Solderable: Yes, with wave or reflow soldering
- Physical Lengths: 6.33 mm to 14.86 mm
- Pin Count: 4 to 32 positions
- Style: BBS, BBD, BBL, BHS, BDL series
- Board Spacing: 3.89 mm, 4.86 mm, 8.51 mm, 14.86 mm
- Contact Material: Copper Alloy with gold plating
- Compatible with: SS, SD, HSS, SL, SDL, ESS, ESD series
- Appropriate for high-reliability, separable, and high-temperature electronic connections
Buy the Samtec BBL – Reliable Separable Connectors for Industrial Applications
Purchase the Samtec Series BBL separable connectors online now to secure high-reliability, rohs-compliant, high-temperature contacts for your electronic and industrial systems. These connectors feature gold plating for excellent conductivity and corrosion resistance and support wave or reflow soldering methods, ensuring durability and secure connections. Available in various lengths, pin counts, and styles, they are designed to meet diverse industrial and electronic wiring needs. Enhance your project’s connectivity with these versatile, high-performance connectors for reliable, separable electrical connections.
Order your Samtec Series BBL connector today and ensure your projects benefit from dependable, high-temperature, low-profile electrical connections.
Frequently Asked Questions
Where can I buy SAMTEC BBL107GF?
You can click on the BUY or RFQ button to purchase BBL107GF from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBL107GF?
You can download the BBL107GF datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBL107GF?
SAMTEC
