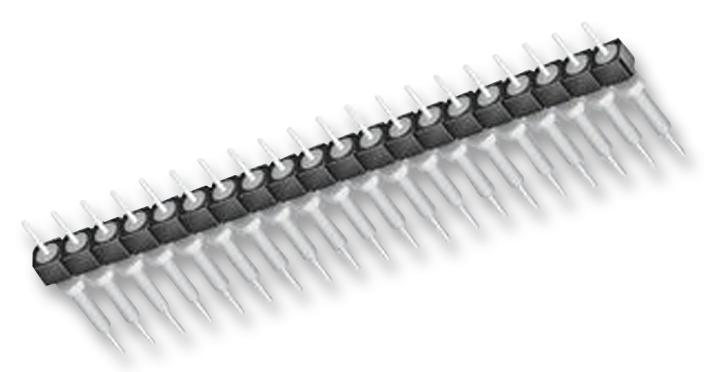

SAMTEC BBS114GB Low Profile Electrical Connector
The BBS114GB is a low-profile connector from the BBS series, designed for reliable separable connections with a compact profile of 3.89 mm. It features black glass-filled polyester insulators for BBS models, and high-temp nylon or liquid crystal polymer for BHS variants. Made with phosphor bronze or brass terminals, they are RoHS compliant, with gold or nickel plating. Suitable for electrical and electronic applications, these connectors support temperature ranges from -55°C to +125°C. They mate with various series including SS, SD, HSS, SL, SDL, ESS, and ESD, providing flexible, durable connections.
SAMTEC BBS114GB Low Profile Electrical Connector Specifications:
- Insulator Material: Black Glass Filled Polyester (BBS, BBD, BBL), Black High Temp Nylon, Liquid Crystal Polymer (BHS)
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50μm Ni, RoHS Compliant
- Lead-Free Solderable: Yes, with wave or reflow soldering
- Number of Pins: 4
- Physical Dimensions: Length varies by model, with Z= (6,33 mm) .210 inches, Z= (8,51 mm) .335 inches, Z= (14,86 mm) 585 inches
- Style Options: E & F for BHS, E & F for BBL, Series compatible with various mating series
- Compliance: RoHS, UL Recognized
- Availability: Some lengths and styles are non-standard and non-returnable
- Application: Electrical and electronic device connections, flexible, reliable, separable
- Connector Features: Low profile, robust design suitable for PCB or modular assemblies
Buy the Samtec Series BBS Low Profile Connector: BBS114GB
Purchase the Samtec BBS114GB low-profile connector online today for high-quality, reliable performance in electronic and electrical applications. These connectors feature a compact 3.89 mm profile, ensuring minimal space usage while providing robust, separable connections. Manufactured with high-temperature resistant materials like glass-filled polyester, nylon, and liquid crystal polymer, they support a temperature range of -55°C to +125°C. The terminals are made from durable phosphor bronze or brass, plated with gold or nickel for excellent conductivity and corrosion resistance. Ideal for PCB mounting, these connectors are RoHS compliant, enabling seamless, environmentally friendly integration into your designs. Choose Samtec for dependable, long-lasting connectivity solutions tailored to your technical needs.
Get Samtec BBS114GB today—built for precision, durability, and seamless connectivity in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC BBS114GB?
You can click on the BUY or RFQ button to purchase BBS114GB from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBS114GB?
You can download the BBS114GB datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBS114GB?
SAMTEC
