SAMTEC BBS125GA Miniature Connector System
The BBS series is a low-profile, separable connection system designed for reliable electrical connections. Made from high-quality insulator materials like black glass-filled polyester, high-temp nylon, and liquid crystal polymer, it tolerates temperatures from -55°C to +125°C. Equipped with phosphor bronze or brass terminals plated with gold over nickel, the series supports wave or reflow soldering methods. Featuring a compact design achieving 3.89 mm board spacings, they are ideal for space-constrained applications requiring dependable, RoHS-compliant connections with optional pins, styles, and lengths for versatile use.
SAMTEC BBS125GA Miniature Connector System Specifications:
- Insulator Material: Black Glass Filled Polyester, High Temp Nylon, Liquid Crystal Polymer
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over Ni (50μm) for BBS, BBD, BBL; Au for BHS
- Option for wave or reflow soldering
- Board spacings: 3.89 mm (0.153 inch) when mated with SL Series
- Pin count options: 2, 4, 8, 16, 32
- Series: BBS, BBD, BBL, BHS, BDL with various styles
- Max pin style options: Style E & F with special styles available
- Physical dimensions vary by style and pin count
- RoHS compliant, lead-free, suitable for automated soldering procedures
- Certifications and recognitions available at manufacturer website
- Note: Some lengths and styles are non-standard and non-returnable

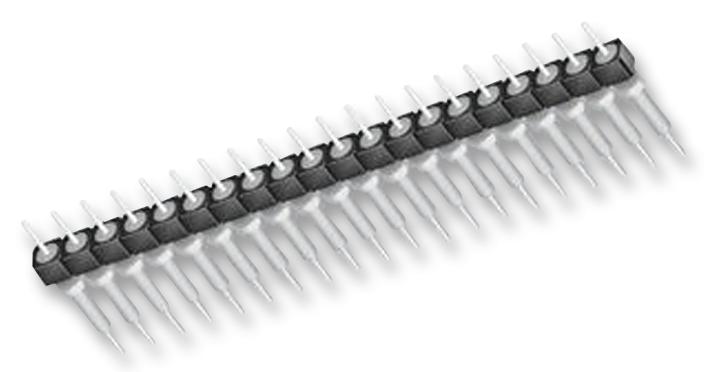

Buy the Buy Samtec BBS Series Part Number BBS125GA Online
Secure your connection needs with the high-quality, RoHS-compliant Miniature Connector System. Designed for reliable and space-efficient electrical connections, it features high-temperature insulators and gold-plated terminals for excellent conductivity and corrosion resistance. This versatile system supports wave or reflow soldering, accommodating various pin counts and styles, making it ideal for compact electronic assemblies in demanding environments. Purchase online today to ensure your projects benefit from durable, high-performance connectors with quick and easy ordering.
Buy Samtec BBS125GA now and experience reliable, space-saving connector solutions for your electronic assembly needs.
Frequently Asked Questions
Where can I buy SAMTEC BBS125GA?
You can click on the BUY or RFQ button to purchase BBS125GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BBS125GA?
You can download the BBS125GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BBS125GA?
SAMTEC
