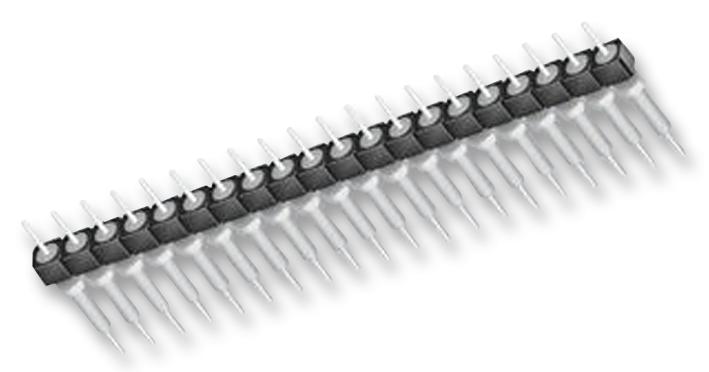

SAMTEC BBS127GB Board-to-Board Connector
The BBS127GB is part of Samtec's series of high-performance board-to-board connectors designed for reliable electrical and mechanical connections in electronic assemblies. Featuring a low profile design, it supports a board spacing of 3.89 mm when mated with the SL series. Constructed with black glass-filled polyester or high-temperature nylon insulators and plated with gold over nickel, it ensures durability and excellent conductivity. Suitable for applications requiring RoHS compliance, this connector accommodates 4 pins per row, with lengths and styles available to fit various configurations. Its robust construction supports temperatures from -55°C to +125°C, making it ideal for demanding electronic systems requiring separable, permanent, or flexible connections.
SAMTEC BBS127GB Board-to-Board Connector Specifications:
- Insulator Material: Black Glass Filled Polyester, Black High Temp Nylon, Liquid Crystal Polymer
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Gold over 50μ
- 27
- 50
- 1.27
- 100
- 250
- 500
- 1
- 27
- 50
- 1.27
- 50
- μm
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes, suitable for wave, reflow, and vapor phase soldering
- Contact Pin Count: 4 pins per row, with styles including E and F for BBS, BBD, BBL, BHS, and BDL series
- Pin Spacing: 2.54 mm (0.100 inch)
- Physical Dimensions: Length varies; typical dimensions include Z=6.33 mm (0.210 inch), Z=8.51 mm (0.335 inch), Z=14.86 mm (0.585 inch)
- Connector Styles: E & F available for BBL series, Style- E & F only for BHS and BBD series
- Application: Suitable for electronic systems requiring separable, reliable, and flexible board connections
- Certifications: RoHS compliant, scope of recognition available at samtec.com/quality
Buy the Buy Samtec BBS127GB Part Number BBS127GB Online
Purchase the Samtec BBS127GB online today to ensure a high-quality, reliable connection solution for your electronic assemblies. Featuring gold-plated contacts and a low profile design, it supports 4 pins per row and supports temperatures up to +125°C. Its RoHS compliance and compatibility with wave and reflow soldering make it versatile for various manufacturing needs. Perfect for applications demanding a secure, separable connection, this connector offers flexibility, durability, and excellent electrical performance, making it an ideal choice for demanding electronic systems.
Buy Samtec BBS127GB now and experience unmatched reliability and performance in electronic connections with low profile, gold-plated contacts, and RoHS compliance.
