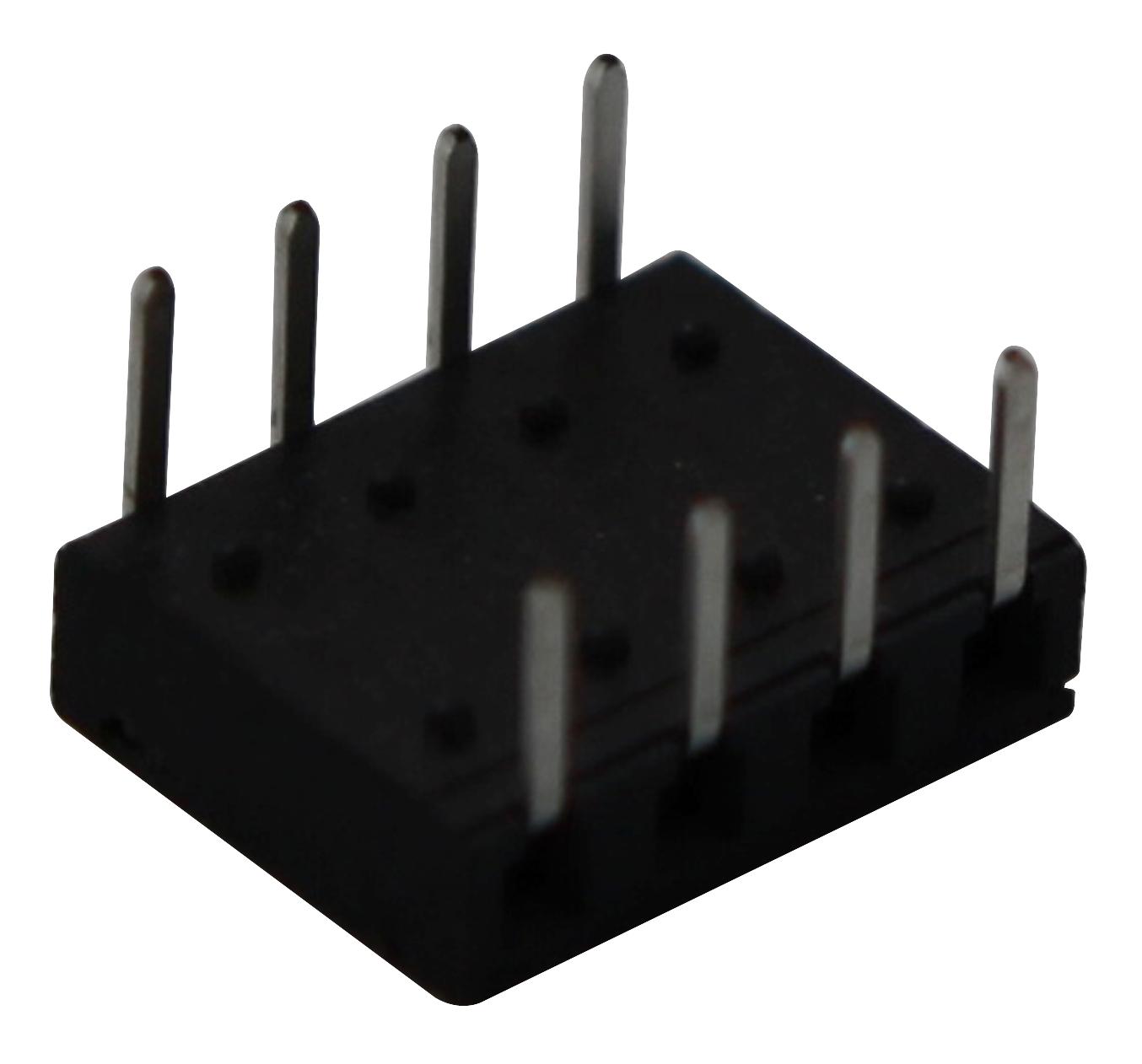

SAMTEC BCS104LSHE Pass-Through Socket Strip
The BCS series from Samtec are Tiger Claw pass-through socket strips designed for various connector series including TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, and PHT. These versatile through-hole socket strips are available in single and dual-row configurations with a 2.54 mm pitch, accommodating 1 to 50 contacts per row. Made from black liquid crystal polymer insulator with phosphor bronze contacts plated with 10 microns of gold, they ensure low contact resistance, high reliability, and are suitable for a wide temperature range of -55°C to 125°C, perfect for industrial and electronic applications.
SAMTEC BCS104LSHE Pass-Through Socket Strip Specifications:
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: 10 microns gold over nickel
- Insulator Material: Black Liquid Crystal Polymer
- Number of Contacts: 1 to 50 per row
- Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Operating Voltage: 475 VAC (mated with TSM), 450 VAC (mated with TSW/HE)
- Current Rating: 4.6 A per pin
- RoHS Compliant: Yes
- Insertion Force: 5 oz (1.39 N) on average
- Withdrawal Force: 3 oz (0.83 N) on average
- Certification: UL E111594, CSA 090871
- Application: Industrial electronic connectors
Buy the Samtec Series BCS Tiger Claw Pass-Through Socket: BCS104LSHE
Purchase the Samtec BCS series pass-through socket strips online today and benefit from high-quality gold-plated contacts, the versatile 2.54mm pitch, and wide temperature range. These Socket Strips are crafted from durable liquid crystal polymer insulator material and feature low contact resistance for optimal electrical performance. Suitable for industrial applications, they support high current ratings and are RoHS compliant. Act now to secure reliable, long-lasting connectivity solutions for your electronic projects and gain quick access to technical support and fast delivery.
Buy Samtec BCS104LSHE pass-through socket strips now and experience unmatched reliability and performance in industrial electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC BCS104LSHE?
You can click on the BUY or RFQ button to purchase BCS104LSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS104LSHE?
You can download the BCS104LSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS104LSHE?
SAMTEC
