SAMTEC BCS105LDHE003 Tiger Claw Pass-Through Socket
The BCS Series Tiger Claw Pass-Through Socket is designed for reliable electrical connections in high-temperature environments, rated from -55°C to +125°C. Constructed with black Liquid Crystal Polymer insulators and phosphor bronze contacts with gold over nickel plating, it supports up to 4.6 A per pin. The socket features an insertion depth of approximately 4.34 mm (0.171 inches), suitable for board thicknesses up to 5.64 mm (0.222 inches). RoHS compliant, lead-free, and solderable, offering a durable, high-performance solution for advanced electronic applications.
SAMTEC BCS105LDHE003 Tiger Claw Pass-Through Socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (50 micro-inches)
- Current Rating: 4.6 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm (0.171 inches)
- Board Thickness Range: Up to 5.64 mm (0.222 inches)
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Available Lengths and Styles: Non-standard options may vary
- Certifications: RoHS compliant

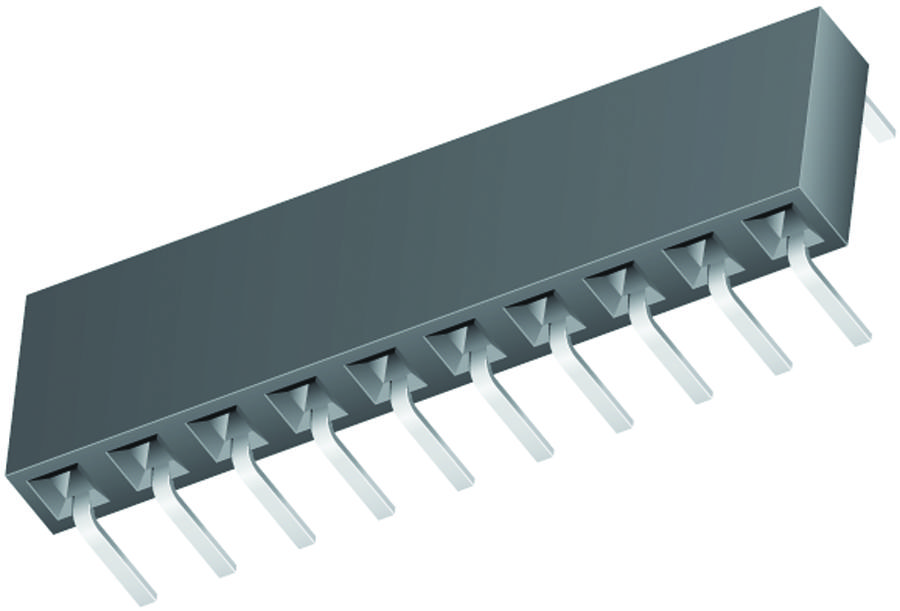

Buy the Buy Samtec Tiger Claw Pass-Through Socket Part Number BCS105LDHE Online
Order the Samtec BCS105LDHE Tiger Claw pass-through socket online today for a dependable, high-temperature solution. This socket features gold over nickel plating, supports 4.6 A per pin, and is RoHS compliant, ensuring safe, eco-friendly performance. Designed for high-performance electronic assemblies, it provides precise insertion depth of 4.34 mm (0.171 inches), accommodating board thicknesses up to 5.64 mm (0.222 inches). Perfect for applications requiring durability, excellent conductivity, and environmental safety, making it a smart choice for engineers and technicians.
Get Samtec BCS105LDHE today—built for high-temperature durability and reliable electrical connections in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC BCS105LDHE003?
You can click on the BUY or RFQ button to purchase BCS105LDHE003 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS105LDHE003?
You can download the BCS105LDHE003 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS105LDHE003?
SAMTEC
