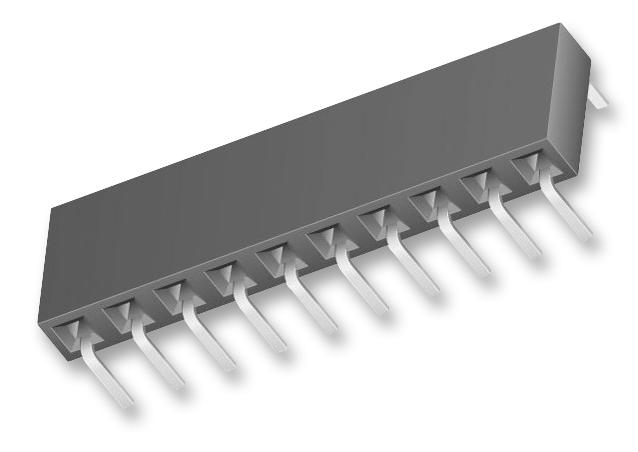

SAMTEC BCS105LSHE Pass-Through Socket Strip
The BCS series from Samtec features Tiger Claw pass-through socket strips designed for through-hole mounting in industrial applications. Compatible with various Samtec connectors, these socket strips come in single and dual-row configurations with a 2.54 mm pitch, accommodating 1 to 50 contacts per row. Made of black liquid crystal polymer insulator and phosphor bronze contacts with 10-micron gold plating, they offer excellent electrical performance, low contact resistance of 10 milliohms, and a temperature range of -55°C to 125°C. Perfect for robust, high-reliability connections in demanding environments.
SAMTEC BCS105LSHE Pass-Through Socket Strip Specifications:
- Pitch: 2.54 mm
- Contact Material: Phosphor bronze
- Plating: Gold over Sn, 10 microns
- Insulator Material: Black Liquid Crystal Polymer
- Number of Pins per Row: 1 to 50
- Current Rating: 4.6 A per pin
- Voltage Rating: 475 VAC mated with TSM, 450 VAC with other connectors
- Operating Temperature Range: -55°C to 125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: From 4.34 mm to 6.35 mm depending on style
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec BCS105LSHE – Reliable Connector for Industrial Applications
Purchase the Samtec BCS series pass-through socket strips online for dependable, high-performance connections in industrial equipment. Featuring a 2.54 mm pitch, gold-plated contacts, and operating temperatures from -55°C to 125°C, these sockets ensure durability and electrical integrity. Compatible with a wide range of Samtec connectors, they are ideal for manufacturing, automation, and control systems. Easy to install, RoHS compliant, and suitable for through-hole mounting, order now to ensure your projects meet the highest standards of quality and reliability.
Get Samtec BCS105LSHE today—built for high-reliability and industrial-grade connections in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC BCS105LSHE?
You can click on the BUY or RFQ button to purchase BCS105LSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS105LSHE?
You can download the BCS105LSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS105LSHE?
SAMTEC
