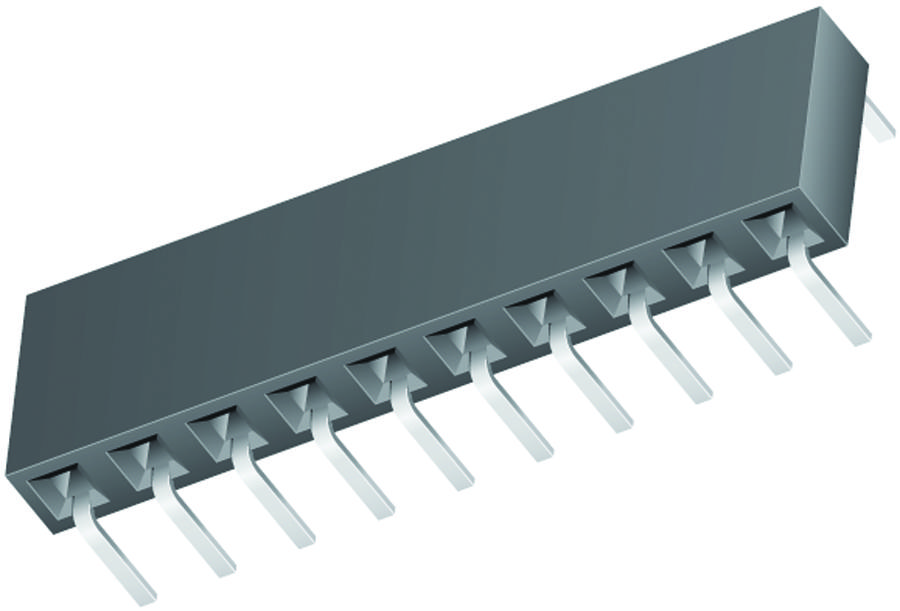

SAMTEC BCS106FSHE Pass-Through Socket
The SAMTEC BCS series pass-through socket is a versatile board mount connector designed for applications requiring frequent mating cycles and robust performance. Featuring gold-plated contacts and a black liquid crystal polymer insulator, this connector offers excellent signal integrity and durability. It is RoHS compliant and suitable for a wide range of industrial and commercial applications, including data transmission and power distribution. The socket mates with various Samtec connectors like TSW, MTSW, and others, providing flexibility in system design.
SAMTEC BCS106FSHE Pass-Through Socket Specifications:
- Mating: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" Gold on contact, Matte Tin on tail
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (TSM mated with -TE/-DE/-PE), 450 VAC (TSW mated with -HE)
- Operating Temperature: -55 °C to +125 °C
- Insertion Depth: (2.54 mm) .100" to (4.34 mm) .171"
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the BCS-106-F-S-HE SAMTEC Pass-Through Socket | myMectronic
Purchase the SAMTEC BCS-106-F-S-HE Pass-Through Socket securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS106FSHE?
You can click on the BUY or RFQ button to purchase BCS106FSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS106FSHE?
You can download the BCS106FSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS106FSHE?
SAMTEC
