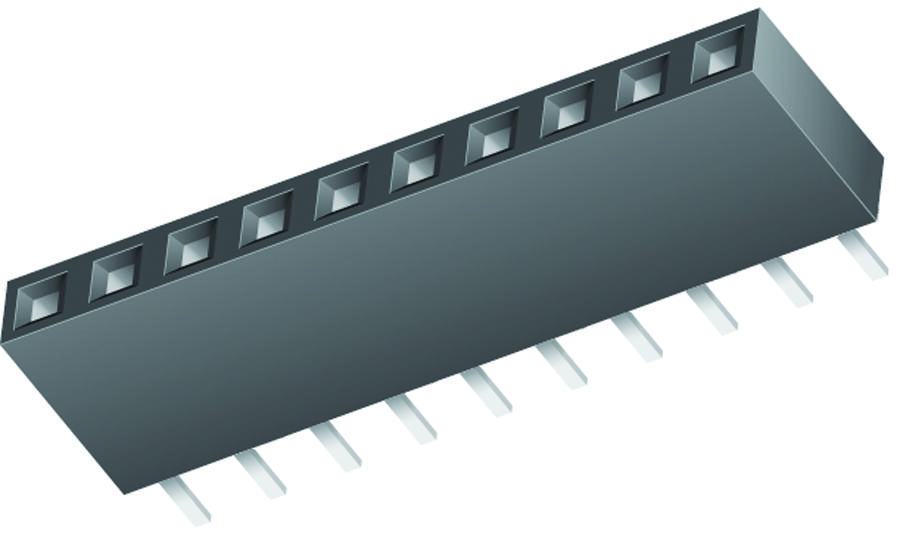

SAMTEC BCS107FSTE Pass-Through Socket
The SAMTEC BCS series pass-through socket is a versatile connector solution for board-to-board applications. Designed for high mating cycles and extended life, this socket offers a robust and reliable connection. It features gold-plated contacts for excellent signal integrity and a matte tin tail for easy soldering. The insulator is made from black liquid crystal polymer, ensuring durability and dimensional stability. Suitable for a wide range of applications requiring secure and reliable connections, the BCS series is a popular choice for industrial and commercial electronics.
SAMTEC BCS107FSTE Pass-Through Socket Specifications:
- Mating: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (mated with TSM), 450 VAC (mated with TSW)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: (4.34 mm) .171" to (2.54).100
- Entry: Top
- RoHS Compliant: Yes
- Lead–Free Solderable: Yes
Buy the BCS-107-F-S-TE SAMTEC Pass-Through Socket | myMectronic
Purchase the SAMTEC BCS-107-F-S-TE Pass-Through Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS107FSTE?
You can click on the BUY or RFQ button to purchase BCS107FSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS107FSTE?
You can download the BCS107FSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS107FSTE?
SAMTEC
