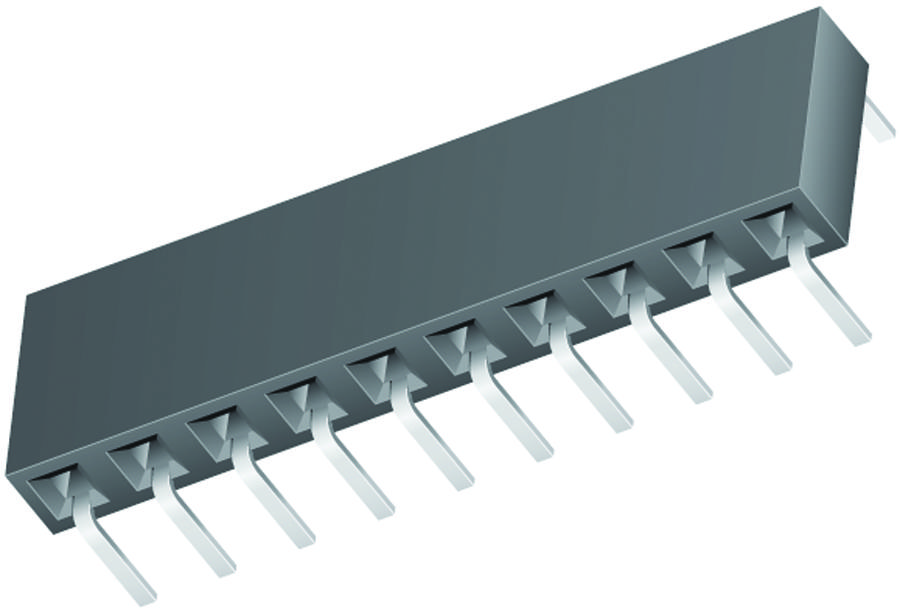

SAMTEC BCS107LMSHE Pass-Through Socket
The SAMTEC BCS series pass-through socket is a versatile board mount connector designed for applications requiring frequent mating cycles and robust performance. Featuring gold-plated contacts and a black liquid crystal polymer insulator, this connector offers excellent signal integrity and durability. It is RoHS compliant and suitable for a wide range of industrial and commercial applications, including telecommunications, data acquisition, and instrumentation. The socket mates with various Samtec connectors like TSW, MTSW, and others, providing flexibility in system design.
SAMTEC BCS107LMSHE Pass-Through Socket Specifications:
- Mating: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail
- Current Rating: 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (mated with TSM), 450 VAC (mated with TSW)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: (4.34 mm) .171" to (2.54).100
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the BCS-107-LM-S-HE SAMTEC Pass-Through Socket | myMectronic
Purchase the SAMTEC BCS-107-LM-S-HE Pass-Through Socket securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS107LMSHE?
You can click on the BUY or RFQ button to purchase BCS107LMSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS107LMSHE?
You can download the BCS107LMSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS107LMSHE?
SAMTEC
