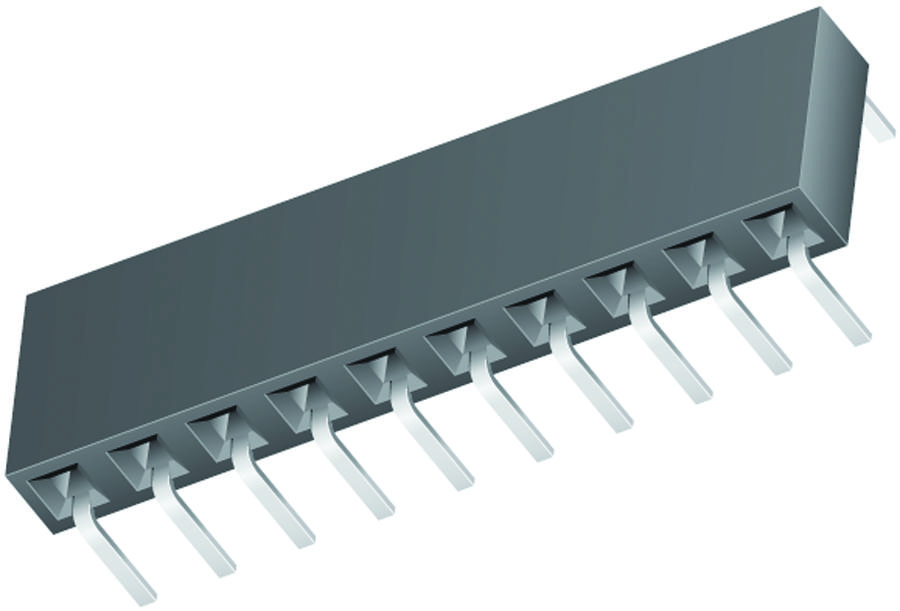

SAMTEC BCS108FSHE Tiger Claw Pass-Through Socket
The Samtec BCS series Tiger Claw pass-through socket is designed with a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over nickel. It supports a current rating of 4.6 A per pin and operates within a temperature range of -55°C to +125°C. The socket features an insertion depth of approximately 4.34 mm (0.171 inches) from the top, accommodating various lengths and board thicknesses, ensuring reliable connections for high-density applications in industrial and electronic systems. Its RoHS compliance confirms environmental safety and lead-free solderability for modern manufacturing standards.
SAMTEC BCS108FSHE Tiger Claw Pass-Through Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Ni
- Current Rating: 4.6 A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 4.34 mm from top, 5.64 mm from bottom
- Board Thickness Compatibility: Minimum 0.222 inch
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series BCS Tiger Claw Pass-Through Socket: BCS108FSHE
Purchase the Samtec Tiger Claw Pass-Through Socket BCS108FSHE online today and benefit from its durable gold-plated contacts, broad temperature range of -55°C to +125°C, and RoHS compliance. Ideal for high-density electronic assemblies, it ensures secure, reliable connections in industrial, automation, and electronic systems. With a robust design featuring black liquid crystal polymer insulation and phosphor bronze contacts, this socket provides excellent mechanical stability, high current capacity, and easy solderability, making it an essential component for modern manufacturing and maintenance solutions.
Buy Samtec BCS108FSHE now and experience unmatched reliability and high-density connection performance.
Frequently Asked Questions
Where can I buy SAMTEC BCS108FSHE?
You can click on the BUY or RFQ button to purchase BCS108FSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS108FSHE?
You can download the BCS108FSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS108FSHE?
SAMTEC
