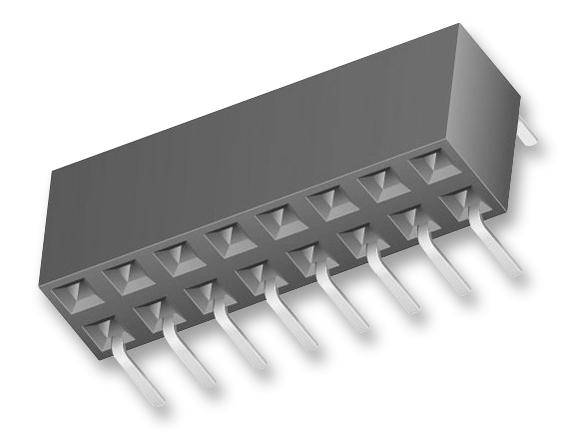

SAMTEC BCS110LDHE Pass-Through Socket
The BCS series from Samtec are Tiger Claw pass-through socket strips designed for through-hole applications. These socket strips are compatible with various Samtec connector series including TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, and PHT. They feature a 2.54mm pitch, accommodate 1 to 50 contacts per row, and are constructed with a durable black liquid crystal polymer insulator. Contacts made from phosphor bronze are plated with 10 micrometers of gold, ensuring excellent conductivity and corrosion resistance. Rated for 4.6A per pin and up to 475V, these sockets operate effectively from -55°C to 125°C, making them ideal for industrial electronics and connector systems needing high reliability and precision.
SAMTEC BCS110LDHE Pass-Through Socket Specifications:
- Pitch: 2.54mm
- Number of Pins per Row: 1 to 50
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: 10u" Gold over Sn
- Current Rating: 4.6 A per pin
- Voltage Rating: 475 V AC with TSM, 450 VAC with other mated series
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34mm to 6.35mm depending on model
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Certifications: UL, CSA
Buy the Samtec BCS Series U+2013 Reliable Pass-Through Socket for Industrial Applications
Purchase the Samtec BCS series pass-through socket strips online now for reliable high-performance connections in industrial electronics. These sockets feature gold-plated contacts for optimal conductivity, are rated for 4.6A per pin and up to 475V, and operate from -55°C to +125°C. Designed with durable liquid crystal polymer insulation, they are compatible with multiple Samtec series and come RoHS compliant. Ideal for through-hole applications requiring precise, corrosion-resistant, and high-current contact solutions, ensuring reliable and long-lasting operation in demanding environments.
Get Samtec BCS series pass-through sockets today—built for precision, high current capacity, and long-lasting durability in industrial and electronic connector systems.
Frequently Asked Questions
Where can I buy SAMTEC BCS110LDHE?
You can click on the BUY or RFQ button to purchase BCS110LDHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS110LDHE?
You can download the BCS110LDHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS110LDHE?
SAMTEC
