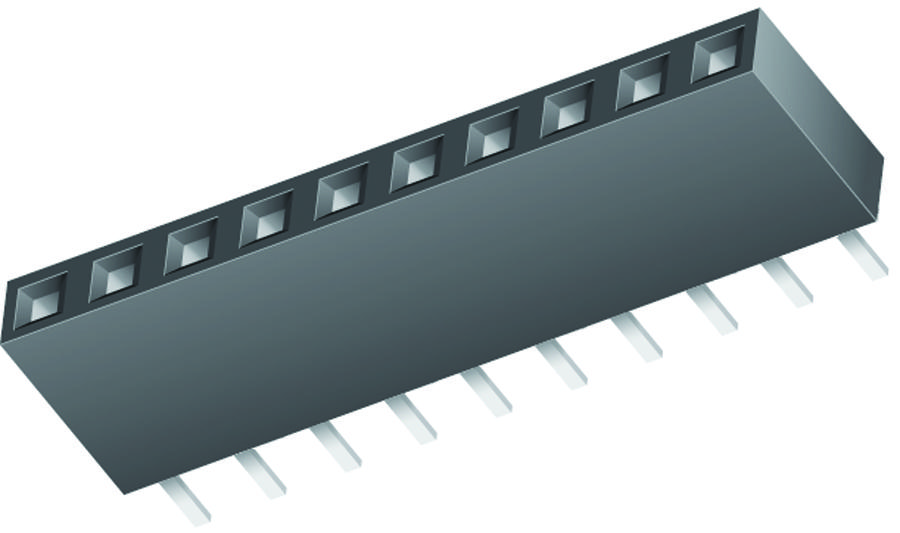

SAMTEC BCS110LSTE002 Pass-Through Socket
The BCS Series Tiger Claw Pass-Through Socket is designed for reliable signal and power connections in electronic assemblies. Made with black liquid crystal polymer insulators and phosphor bronze contacts, it offers high durability, RoHS compliance, and lead-free solderability. Suitable for board thicknesses up to 5.64 mm, its versatile design allows easy insertion and secure mating with compatible connectors like TSW, MTSW, and others. Ideal for industrial, automation, and electronic device applications requiring high current ratings of 4.6 A per pin and operating temperatures from 55°C to +125°C, ensuring robust performance in demanding environments.
SAMTEC BCS110LSTE002 Pass-Through Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50 µ
- Ni
- Current Rating: 4.6 A per pin
- Operating Temperature Range: 55 °C to +125 °C
- Insertion Depth: 4.34 mm (0.171 inches) to 6.35 mm (0.250 inches)
- Board Thickness Compatibility: Minimum 5.64 mm (0.222 inches)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Applicable connectors: TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM
- Part Number: BCS110LSTE002
Buy the Samtec Series BCS BCS110LSTE002: Tiger Claw Pass-Through Socket
Purchase the Samtec BCS110LSTE002 Pass-Through Socket online today for reliable connections in electronic assemblies. Featuring phosphor bronze contacts with gold over nickel plating, it ensures excellent electrical performance and corrosion resistance. Made from black liquid crystal polymer insulators, it supports high current ratings of 4.6 A per pin and operates from 55°C to +125°C. Compatible with various connectors, this socket is ideal for industrial and automation applications requiring secure, durable, and RoHS-compliant solutions for demanding environments.
Get Samtec BCS110LSTE002 today—built for precise connection and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC BCS110LSTE002?
You can click on the BUY or RFQ button to purchase BCS110LSTE002 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS110LSTE002?
You can download the BCS110LSTE002 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS110LSTE002?
SAMTEC
