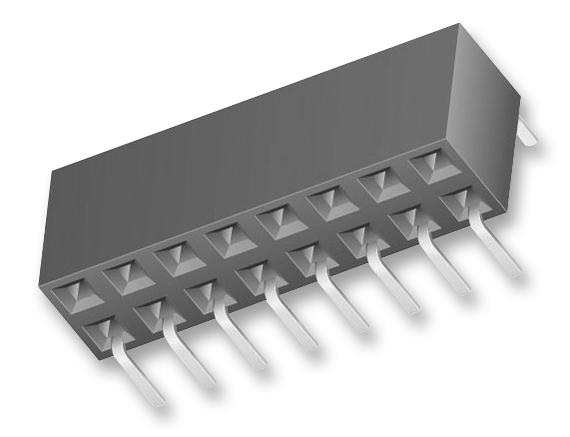

SAMTEC BCS111LDHE Socket Strip Connectors
The BCS series from Samtec features Tiger Claw pass-through socket strips designed for through-hole mounting, compatible with various connector series including TSW, MTSW, HTSW, and others. These connectors come in single and dual-row configurations with optional horizontal entry, having a 2.54mm pitch and contact counts from 1 to 50 per row. Made with a black liquid crystal polymer insulator and phosphor bronze contacts plated with 10 micrometers of gold, they provide reliable connectivity. Suitable for industrial uses, operating from -55°C to 125°C with low contact resistance of 10 milliohms.
SAMTEC BCS111LDHE Socket Strip Connectors Specifications:
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: 10 micrometers of gold
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin
- Voltage Rating: 475 V (mated with TSM), 450 VAC (mated with HSW)
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34 mm to 6.35 mm from top
- Number of Pins per Row: 1 to 50
- RoHS Compliant: Yes
- Application: industrial, connector systems
Buy the Samtec Series BCS Tiger Claw: BCS111LDHE
Discover the Samtec BCS series Tiger Claw pass-through socket strips, engineered for reliable, high-performance connections in industrial and electronic applications. These connectors feature a 2.54mm pitch, gold-plated phosphor bronze contacts, and a durable liquid crystal polymer insulator. Suitable for a wide temperature range of -55°C to 125°C, they offer low contact resistance and high current ratings of 4.6A per pin. Designed for easy installation with optional horizontal entry, these socket strips ensure robust connections in various electronic assemblies. Order online now to secure dependable performance and seamless integration.
Get Samtec BCS111LDHE today—built for precise connectivity and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC BCS111LDHE?
You can click on the BUY or RFQ button to purchase BCS111LDHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS111LDHE?
You can download the BCS111LDHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS111LDHE?
SAMTEC
