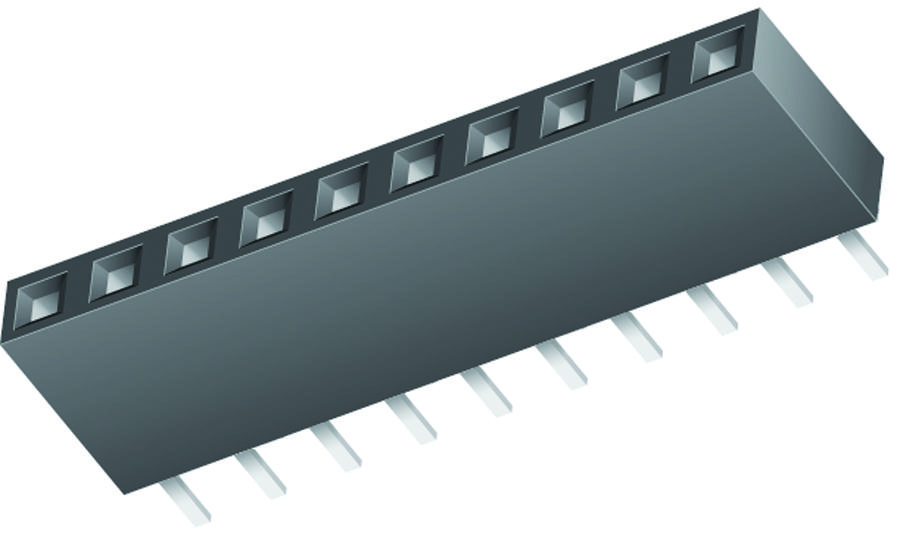

SAMTEC BCS113FSTE Pass-Through Socket
The Tiger Claw Pass-Through Socket is a high-performance connector designed for reliable electrical connections in demanding environments. Made with insulator material Liquid Crystal Polymer and contact material Phosphor Bronze, it offers RoHS compliance and lead-free solderability. Capable of operating in temperatures from -55°C to +125°C, it supports a current rating of 4.6 A per pin. The socket features different platings over nickel, with insertion depths ranging from 0.171 inches to 0.285 inches, and is compatible with various mating components including TSW, MTSW, and ZSS, ensuring versatile application in electronics assembly and manufacturing.
SAMTEC BCS113FSTE Pass-Through Socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over Ni (50 µ
- Temperature Rating: -55°C to +125°C
- Current Rating: 4.6 A per pin
- Insertion Depth: 0.171 to 0.285 inches
- RoHS Compliant, Lead-Free Solderable
- Compatible with multiple mating components including TSW, MTSW, ZSS
- Operating Temp Range: -55°C to +125°C
- Body Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Certifications: RoHS, Lead-Free
Buy the Buy Samtec Pass-Through Socket Part Number BCS113FSTE Online
Experience dependable electrical connections with the Samtec Pass-Through Socket BCS113FSTE. Made from Liquid Crystal Polymer insulator and Phosphor Bronze contacts, it supports temperatures from -55°C to +125°C with a current rating of 4.6 A per pin. RoHS compliant and lead-free, it is compatible with various mating components like TSW and MTSW, making it ideal for electronic assembly, manufacturing, and high-reliability applications. Purchase online now for consistent, professional-quality connections.
Order your Samtec BCS113FSTE high-quality pass-through socket today and ensure secure, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC BCS113FSTE?
You can click on the BUY or RFQ button to purchase BCS113FSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS113FSTE?
You can download the BCS113FSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS113FSTE?
SAMTEC
