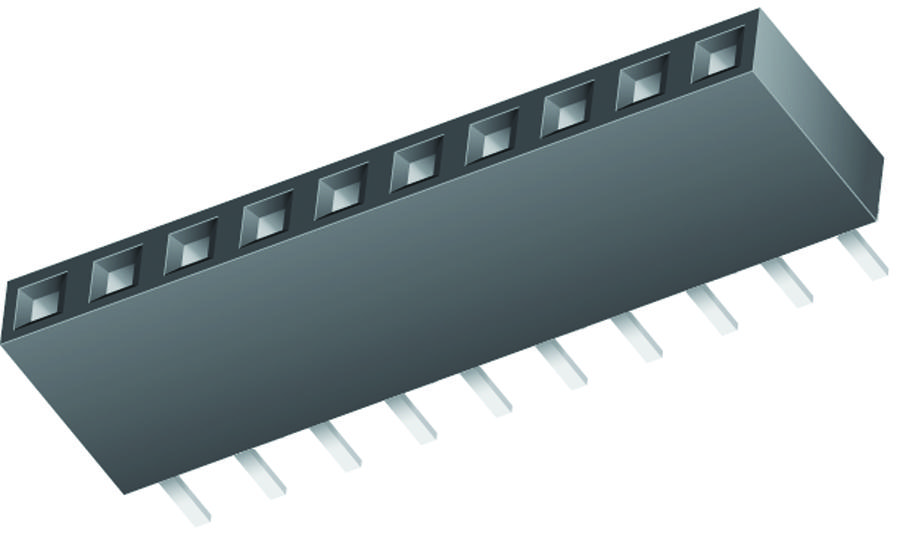

SAMTEC BCS114LMSTE Pass-Through Socket
The SAMTEC BCS series pass-through socket is a versatile connector solution designed for board-to-board applications. Featuring a robust design with gold-plated contacts and a phosphor bronze construction, this socket ensures high mating cycles and reliable performance. It is ideal for applications requiring secure and frequent connections, such as industrial automation, medical equipment, and telecommunications infrastructure. The socket's liquid crystal polymer insulator provides excellent insulation and dimensional stability, while its RoHS compliance ensures environmental responsibility. Available with various plating options and entry configurations, the BCS series offers flexibility to meet diverse design requirements.
SAMTEC BCS114LMSTE Pass-Through Socket Specifications:
- Mates with: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating (BCS/TSW): 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (BCS/TSW mated with TSM), 450 VAC (BCS mated with TSW)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: (4.34 mm) .171" to (2.54).100
- Entry: Top
- RoHS Compliant: Yes
- Lead–Free Solderable: Yes
Buy the BCS-114-LM-S-TE SAMTEC Pass-Through Socket | myMectronic
Purchase the SAMTEC BCS-114-LM-S-TE Pass-Through Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS114LMSTE?
You can click on the BUY or RFQ button to purchase BCS114LMSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS114LMSTE?
You can download the BCS114LMSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS114LMSTE?
SAMTEC
