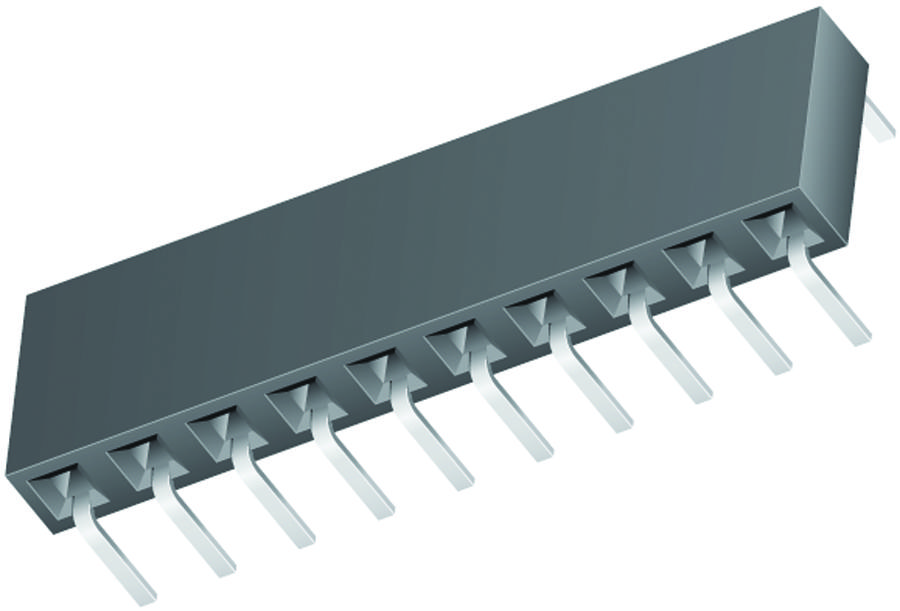

SAMTEC BCS115LDHE001 Pass-Through Socket
The SAMTEC BCS series pass-through socket is a robust and reliable connector solution designed for demanding applications requiring high mating cycles and extended product life. Constructed with a phosphor bronze contact material and featuring gold flash on the contact and matte tin on the tail, this connector ensures excellent signal transmission and durability. The black liquid crystal polymer insulator provides superior insulation and dimensional stability. It is RoHS compliant and lead-free solderable, making it suitable for modern electronic designs. Applications include board-to-board connections and other general-purpose interconnects where a pass-through configuration is required. Please note that some lengths, styles, and options are non-standard and non-returnable.
SAMTEC BCS115LDHE001 Pass-Through Socket Specifications:
- Mating: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" (0.25 µm) Gold on contact, Matte Tin on tail
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (BCS/TSW mated), 450 VAC (BCS/TSW mated)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: (4.34 mm) .171" to (2.54).100
- Entry: Top Entry
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the BCS-115-L-D-HE-001 SAMTEC Pass-Through Socket | myMectronic
Purchase the SAMTEC BCS-115-L-D-HE-001 Pass-Through Socket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS115LDHE001?
You can click on the BUY or RFQ button to purchase BCS115LDHE001 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS115LDHE001?
You can download the BCS115LDHE001 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS115LDHE001?
SAMTEC
