SAMTEC BCS118FSHE TIGER CLAW SOCKET
The BCS118FSHE is a high-performance TIGER CLAW pass-through socket designed for reliable electrical connections in demanding environments. It features a liquid crystal polymer insulator and phosphor bronze contact material plated with nickel over gold, ensuring durability and excellent conductivity. With a current rating of 4.6 A per pin and an operating temperature range from -55°C to +125°C, this socket mates seamlessly with various connectors like TSW, MTSW, and HTSW. Its compact design allows insertion depths up to 4.34 mm, making it ideal for circuit board applications requiring robust signal integrity.
SAMTEC BCS118FSHE TIGER CLAW SOCKET Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Nickel
- Current Rating: 4.6 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm to 5.64 mm (0.171 to 0.222 inches)
- Board Thickness: Minimum 0.222 inches
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatibility: Mates with TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM
- RoHS and REACH compliant
- Part Number: BCS118FSHE

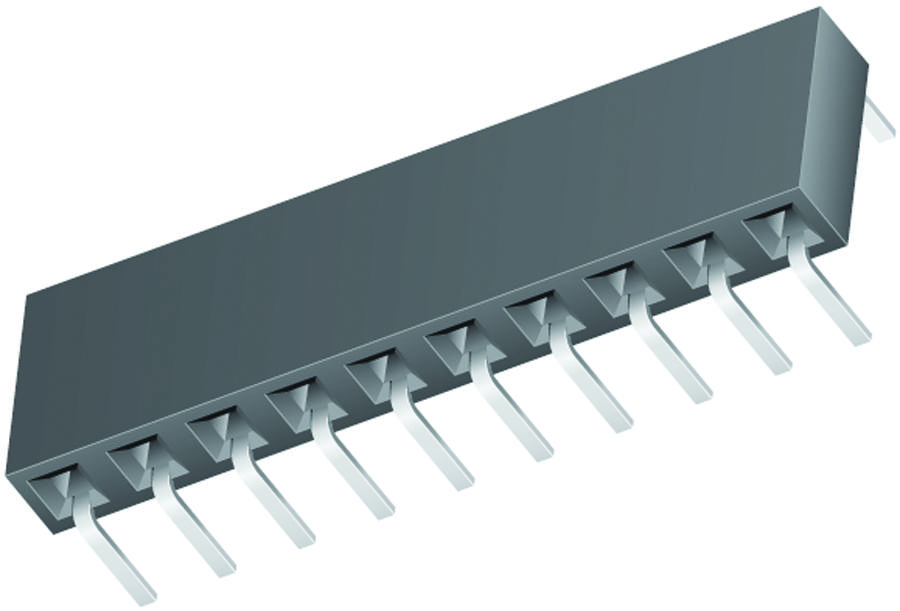

Buy the Buy Samtec BCS118FSHE Part Number BCS118FSHE Online
Experience reliable connections with the TIGER CLAW socket, featuring a durable liquid crystal polymer insulator and phosphor bronze contacts. Rated for 4.6 A per pin, it operates efficiently from -55°C to +125°C, ensuring excellent electrical performance in demanding conditions. Its compact design allows easy insertion up to 4.34 mm, making it suitable for circuit boards and high-density applications. RoHS compliant and lead-free, this socket provides a robust, dependable connection for electronic systems requiring high signal integrity.
Get Samtec BCS118FSHE today—built for precision and long-lasting durability in high-performance electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC BCS118FSHE?
You can click on the BUY or RFQ button to purchase BCS118FSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS118FSHE?
You can download the BCS118FSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS118FSHE?
SAMTEC
