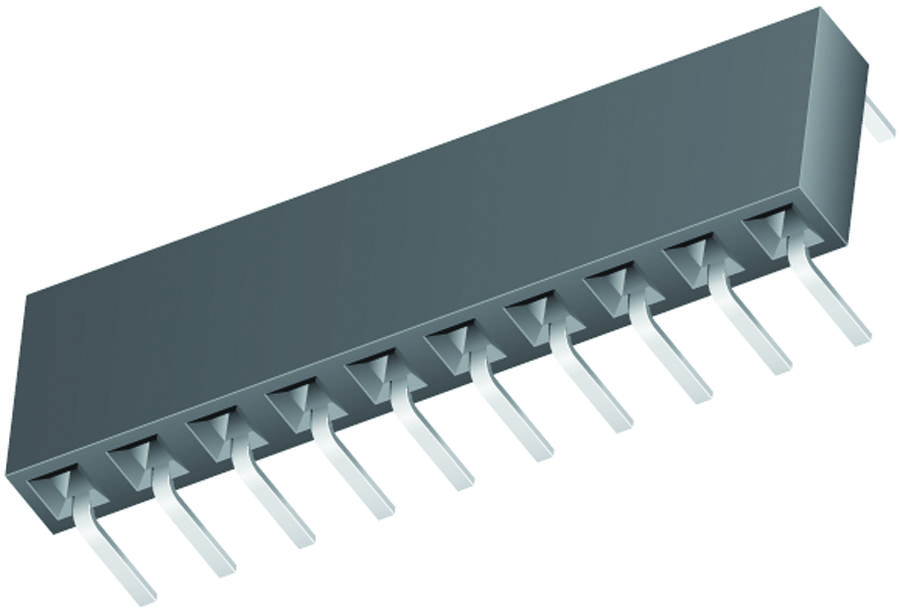

SAMTEC BCS120LMDHE Pass-Through Socket
The BCS120LMDHE is a durable pass-through socket designed for industrial applications, featuring a black liquid crystal polymer insulator and phosphor bronze contacts with gold plating over nickel for enhanced conductivity. It supports a current rating of 4.6 A per pin and operates efficiently within an temperature range of -55°C to +125°C. This socket offers an insertion depth of approximately 4.34 mm (0.171 inches) from the top and 6.35 mm (0.250 inches) from the bottom, making it ideal for high-performance electronic connector assemblies in rugged environments.
SAMTEC BCS120LMDHE Pass-Through Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Current Rating: 4.6 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm (0.171 inches) from top, 6.35 mm (0.250 inches) from bottom
- Mounting Style: Pass-through socket
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Other Platings: Available upon request
- Standard Lengths and Styles: Subject to non-standard options, consult manufacturer
- Designed for high-reliability connections in industrial applications
Buy the Samtec BCS120L– Reliable Pass-Through Socket for Industrial Applications
Discover the Samtec BCS120LMDHE pass-through socket, engineered with a black liquid crystal polymer insulator and phosphor bronze contacts with gold plating. Rated for 4.6 A per pin, it operates efficiently from -55°C to +125°C. This high-performance socket features a precise insertion depth of approximately 4.34 mm from the top and 6.35 mm from the bottom, providing reliable connections in rugged industrial environments. Designed for durability and precision, it is available for online purchase, ensuring quick delivery for your electronics assembly needs.
Get Samtec BCS120L today—built for precision and long-lasting durability in electronic connector assemblies.
Frequently Asked Questions
Where can I buy SAMTEC BCS120LMDHE?
You can click on the BUY or RFQ button to purchase BCS120LMDHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS120LMDHE?
You can download the BCS120LMDHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS120LMDHE?
SAMTEC
