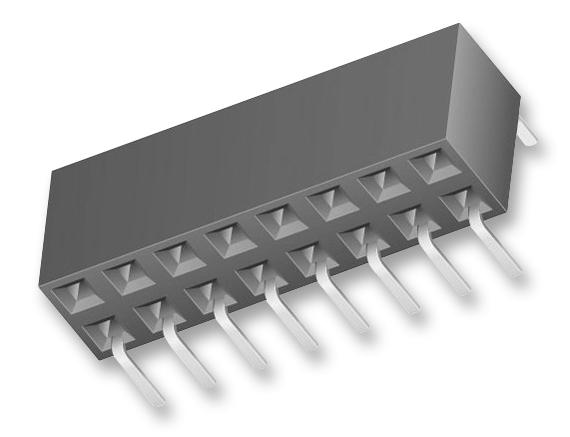

SAMTEC BCS123LDHE Socket Strip
The BCS series from Samtec are Tiger Claw pass-through socket strips designed for reliable through-hole mounting in various electronic assemblies. Constructed with black liquid crystal polymer insulators and phosphor bronze contacts plated with 10 micrometers of gold, these socket strips ensure durable electrical connections. They support a 2.54mm pitch, accommodate from 1 to 50 contacts per row, and are compatible with multiple Samtec connector series including TSW, MTSW, HTSW, HMTSW, among others. With a contact resistance of 10 milliohms and an operating temperature range from -55°C to +125°C, they are suitable for high-temperature industrial and commercial use, meeting UL and CSA safety standards.
SAMTEC BCS123LDHE Socket Strip Specifications:
- Pitch Spacing: 2.54mm
- Contact Material: Phosphor Bronze
- Plating: Gold, 10 micrometers
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin
- Voltage Rating: 475 VAC (mated with TSM), 450 VAC (mated with HE and TSW)
- Operating Temperature: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Force: 5.02 oz (1.39 N) on SQ pin
- Withdrawal Force: 3 oz (0.83 N) on SQ pin
- Standards: UL E111594, CSA 090871
- Number of Pins per Row: Variable, up to 50
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Buy Samtec BCS Part Number BCS123LDHE Online
Order the Samtec BCS socket strip series online today to ensure your electronic projects benefit from high-quality, durable, and reliable pass-through connections. Featuring gold-plated contacts and a robust construction, these socket strips support high-current and high-temperature environments, making them ideal for industrial applications. With a 2.54mm pitch and compatibility with various Samtec connector series, they provide flexible, secure connections for complex assemblies. Invest in top-grade engineering components online now for seamless integration and long-lasting performance in your projects.
Buy Samtec BCS123LDHE now and experience reliable high-temperature connections with enhanced durability in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC BCS123LDHE?
You can click on the BUY or RFQ button to purchase BCS123LDHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS123LDHE?
You can download the BCS123LDHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS123LDHE?
SAMTEC
