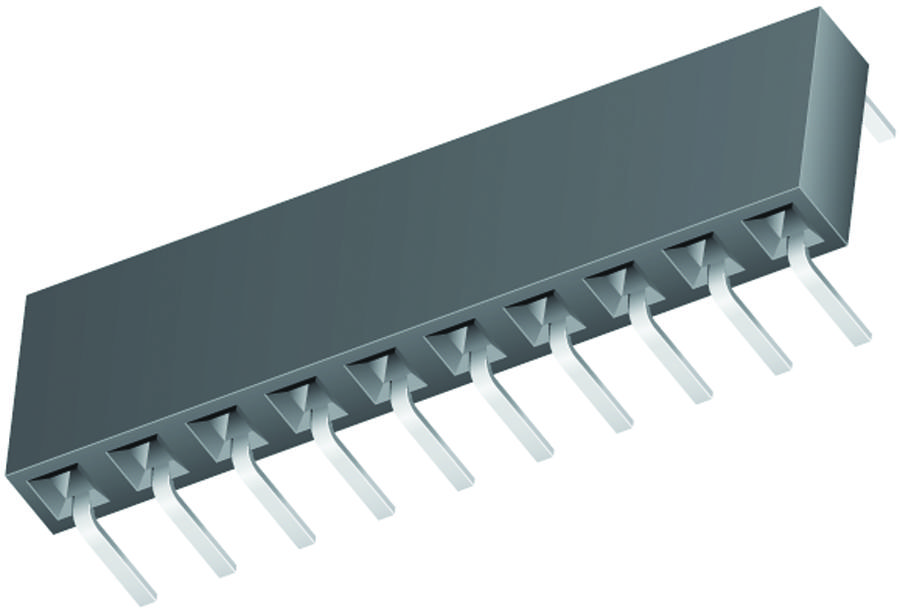

SAMTEC BCS124FSHE Pass-Through Socket
The BCS124FSHE is a high-quality TIGER CLAW pass-through socket designed for reliable electrical connections in electronic assemblies. Constructed with black liquid crystal polymer insulators and phosphor bronze contacts, it features RoHS compliance and lead-free solderability. The socket mates with various connectors such as TSW, MTSW, HTSW, and others, ensuring versatile compatibility. It operates within a temperature range of -55 °C to +125 °C, with an insertion depth of 4.34 mm (.171 inches) to 6.35 mm (.250 inches). Its current rating per pin is 4.6 amps, making it suitable for demanding electronic applications.
SAMTEC BCS124FSHE Pass-Through Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50 µ
- Nickel
- Current Rating: 4.6 A per pin
- Operating Temperature Range: -55 °C to +125 °C
- Insertion Depth: 4.34 mm (.171 in) to 6.35 mm (.250 in)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with: TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, PHT, MTLW
- Material: Phosphor Bronze contacts, Liquid Crystal Polymer insulator
- RoHS Compliance: Yes
- Packaging: Non-returnable, subject to change without notice
Buy the Buy Samtec BCS124FSHE Pass-Through Socket Online
Purchase the Samtec BCS124FSHE pass-through socket online today and experience reliable electrical connectivity with high-quality phosphor bronze contacts and liquid crystal polymer insulators. Designed for demanding applications, this socket features a current rating of 4.6 amps per pin, operating efficiently from -55°C to +125°C. Its compact insertion depth ranges from 4.34 mm to 6.35 mm, ensuring easy integration into your electronic assemblies. RoHS compliant and lead-free, it guarantees safety, durability, and versatility for various electronic projects.
Get Samtec BCS124FSHE high-reliability pass-through socket today—built for precision, durability, and versatile electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC BCS124FSHE?
You can click on the BUY or RFQ button to purchase BCS124FSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS124FSHE?
You can download the BCS124FSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS124FSHE?
SAMTEC
