SAMTEC BCS126FSHE High-Current Connector
The BCS series Tiger Claw pass-through socket provides reliable connections for high-current applications up to 4.6A per pin. Manufactured from black liquid crystal polymer with phosphor bronze contacts coated with 50 microinches of nickel, it ensures durability and corrosion resistance. Compatible with multiple mating options including TSW, MTSW, and others, the socket operates between -55°C and +125°C. Its insertion depth varies from 4.34mm to 6.35mm, and it complies with RoHS and lead-free soldering standards, making it ideal for electronics requiring robust, high-reliability connectors.
SAMTEC BCS126FSHE High-Current Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Nickel over 50 microinches of nickel
- Current Rating: 4.6 Amperes per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34mm to 6.35mm (.171" to .250") from top
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with: TSW, MTSW, HTSW, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM

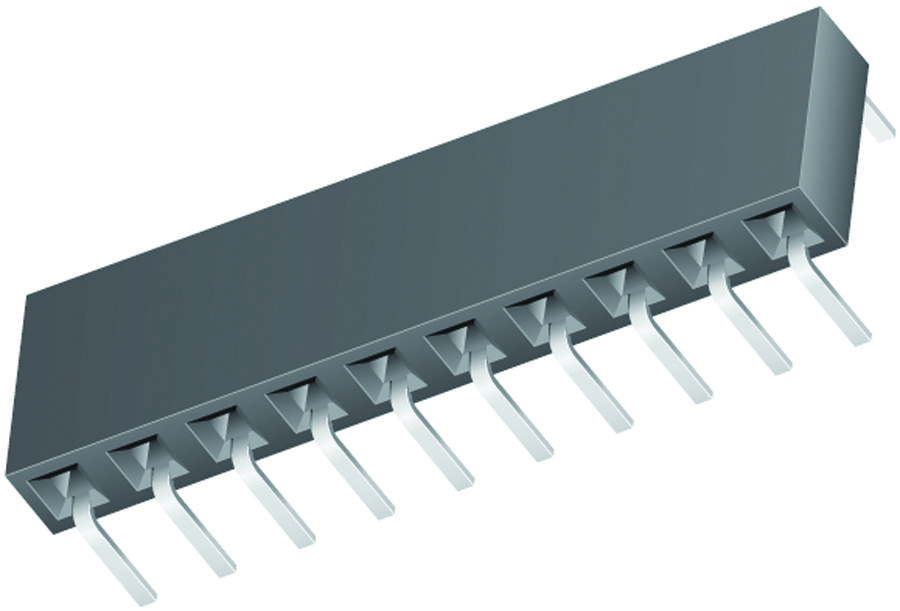

Buy the Buy Samtec BCS Series Part Number BCS126FSHE Online
Secure your electronics with the Samtec BCS series high-current connector. Crafted with durable liquid crystal polymer and phosphor bronze contacts, it offers reliable connections up to 4.6A per pin. Operating efficiently from -55°C to +125°C, this RoHS-compliant connector ensures high performance in demanding environments. Its versatile insertion depths and compatibility with multiple mating options make it perfect for various high-reliability applications. Purchase online today for instant availability and fast delivery to streamline your project needs.
Get Samtec BCS126FSHE today—designed for high current reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy SAMTEC BCS126FSHE?
You can click on the BUY or RFQ button to purchase BCS126FSHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS126FSHE?
You can download the BCS126FSHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS126FSHE?
SAMTEC
