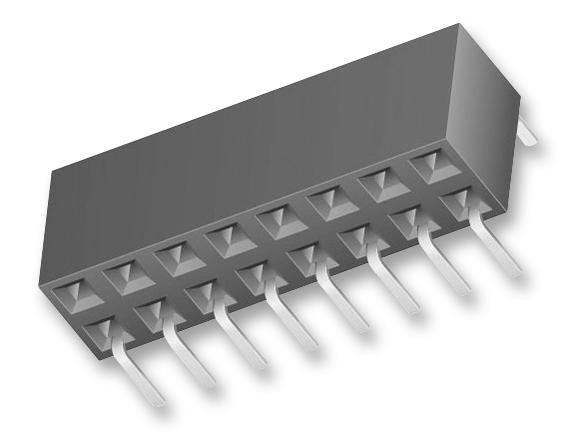

SAMTEC BCS127LDHE Tiger Claw Socket
The BCS series from Samtec features Tiger Claw pass-through socket strips designed for reliable through-hole mounting in industrial electronics. Made with a durable black liquid crystal polymer insulator and phosphor bronze contacts, these sockets have gold plating for optimal electrical conductivity. They support current ratings up to 4.6 A per pin and operate within -55°C to 125°C temperature range, ensuring high performance in demanding environments. Compatible with a wide range of Samtec connectors, they provide low contact resistance of 10 milliohm and meet UL and CSA standards, making them ideal for robust circuit connections.
SAMTEC BCS127LDHE Tiger Claw Socket Specifications:
- Pitch: 2.54mm
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27μm) gold
- Current Rating: 4.6 A per pin
- Voltage Rating: 475 VAC (mated with TSM), 450 VAC (mated with TSW and HE)
- Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohm
- Insertion Depth: 4.34mm to 6.35mm from top, plus board thickness minimum
- Insertion Force: 5.02 oz (1.39 N) average for single contact
- Withdrawal Force: 3 oz (0.83 N) average for single contact
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series Tiger Claw Socket: BCS127LDHE
Purchase the Samtec BCS127LDHE Tiger Claw pass-through socket strip today. Designed for reliable, high-performance connections in industrial and electronic projects. These sockets feature gold-plated contacts for excellent conductivity, operate within a temperature range of -55°C to 125°C, and support up to 4.6 A per pin. Compatible with multiple Samtec connector series, they meet UL and CSA standards, ensuring safety and quality. Easily install in through-hole mounting applications, providing a secure and stable connection for your electronic assemblies.
Get Samtec BCS127LDHE today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC BCS127LDHE?
You can click on the BUY or RFQ button to purchase BCS127LDHE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS127LDHE?
You can download the BCS127LDHE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS127LDHE?
SAMTEC
