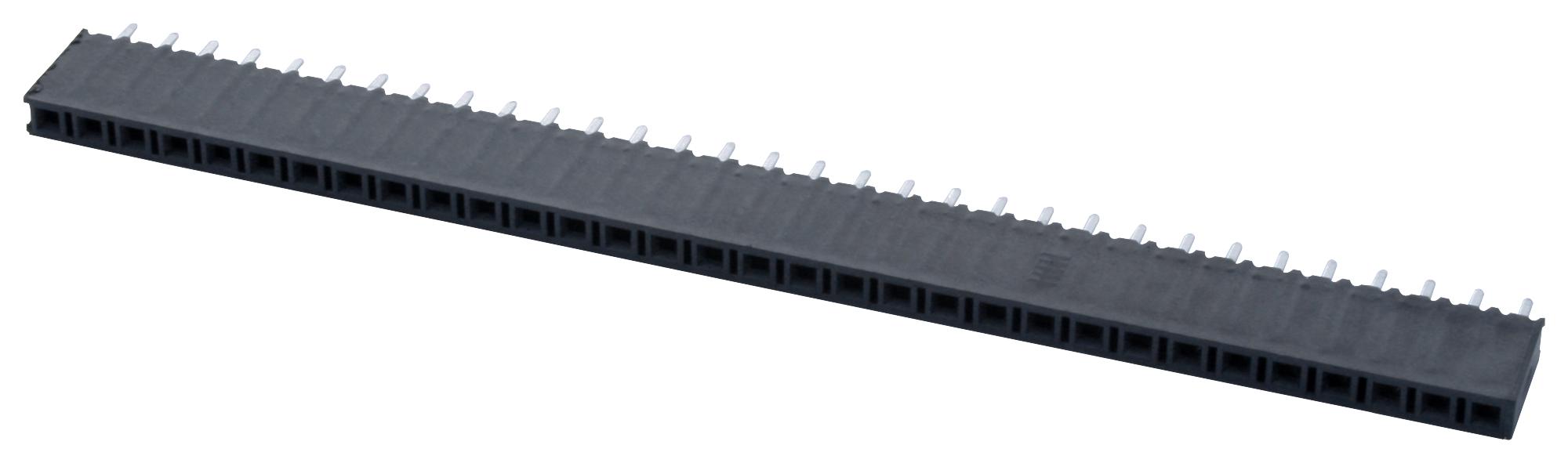

SAMTEC BCS132LSTE Pass-Through Socket Strips
The BCS series from Samtec are Tiger Claw pass-through socket strips designed for through-hole mounting, compatible with various Samtec connector series. These socket strips come in single and dual-row configurations with optional top entry, featuring a 2.54mm pitch spacing and 1 to 50 contacts per row. Constructed with a black liquid crystal polymer insulator and phosphor bronze contacts plated with 10-micron gold, they provide reliable electrical performance with a contact resistance of 10 milliohms. Operating from -55°C to 125°C, these socket strips are ideal for industrial automation, electronics, and manufacturing applications requiring secure and durable connections.
SAMTEC BCS132LSTE Pass-Through Socket Strips Specifications:
- Pitch: 2.54 mm
- Number of contacts per row: 1 to 50
- Insulator Material: Black liquid crystal polymer
- Contact Material: Phosphor bronze
- Plating: 10-micron gold over nickel
- Contact Resistance: 10 milliohms
- Voltage Rating: 475 V (mated with TSM), 450 VAC (mated with TSW)
- Operating Temperature Range: -55°C to +125°C
- Insertion Force: 5.02 oz (1.39 N) on average
- Withdrawal Force: 3 oz (0.83 N) on average
- RoHS Compliant: Yes
- Applications: Industrial equipment, electronics, manufacturing, automation systems
Buy the Samtec BCS132LSTE – Reliable Pass-Through Socket for Industrial Applications
Enhance your electronic projects with Samtec BCS series Tiger Claw pass-through socket strips, featuring 2.54mm pitch, gold-plated contacts, and a broad temperature range. These socket strips provide secure, reliable connections for industrial, automation, and manufacturing applications. With a construction utilizing durable liquid crystal polymer insulators and phosphor bronze contacts, they ensure minimal contact resistance and long-term stability. Available in single and dual-row configurations, they are RoHS compliant and ideal for high-performance electronic assemblies requiring precise pin alignment and robust electrical contact. Order online today to upgrade your connector solutions.
Buy Samtec BCS132LSTE pass-through sockets now and experience unmatched reliability and performance in your industrial and electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC BCS132LSTE?
You can click on the BUY or RFQ button to purchase BCS132LSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS132LSTE?
You can download the BCS132LSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS132LSTE?
SAMTEC
