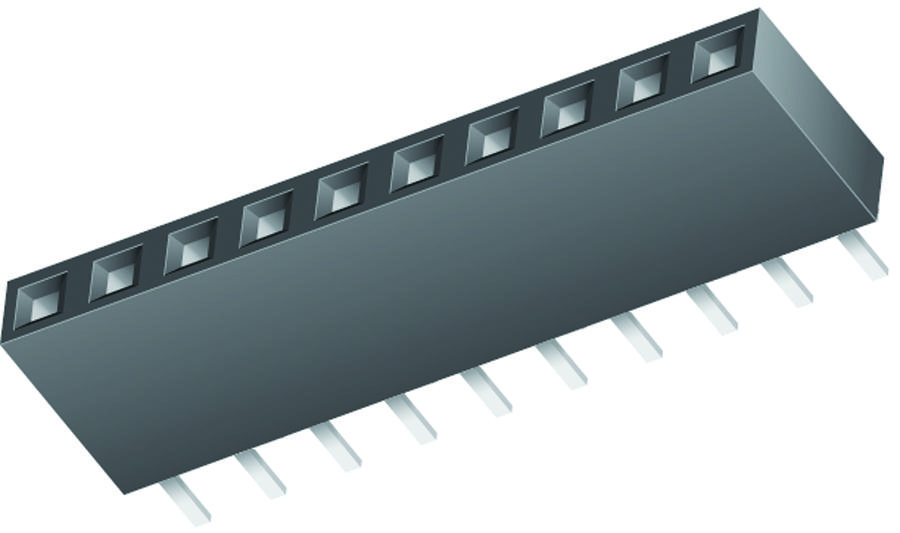

SAMTEC BCS142FSTE Pass-Through Socket
The SAMTEC BCS series pass-through socket is a versatile connector solution for board-to-board applications. Designed for high mating cycles and extended life, it offers reliable performance in demanding environments. The socket features gold-plated contacts for excellent signal integrity and a matte tin tail for easy soldering. Constructed with a black liquid crystal polymer insulator, it provides robust mechanical support and electrical insulation. It is RoHS compliant and lead-free solderable, making it suitable for modern electronic designs. Applications include industrial automation, medical devices, and telecommunications equipment.
SAMTEC BCS142FSTE Pass-Through Socket Specifications:
- Mates with: TSW, MTSW, HTSW, BCS, HMTSW, TSS, ZSS, DW, EW, ZW, HW, TSM, MTLW, PHT
- Plating: 10 µ" Gold on contact, Matte Tin on tail
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 4.6 A per pin (2 pins powered)
- Voltage Rating: 475 VAC (mated with TSM), 450 VAC (mated with TSW)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: (2.54 mm) .100" to (4.34 mm) .171"
- RoHS Compliant: Yes
- Lead–Free Solderable: Yes
Buy the BCS-142-F-S-TE SAMTEC Pass-Through Socket | myMectronic
Secure your SAMTEC BCS-142-F-S-TE Pass-Through Socket with our reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BCS142FSTE?
You can click on the BUY or RFQ button to purchase BCS142FSTE from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BCS142FSTE?
You can download the BCS142FSTE datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BCS142FSTE?
SAMTEC
