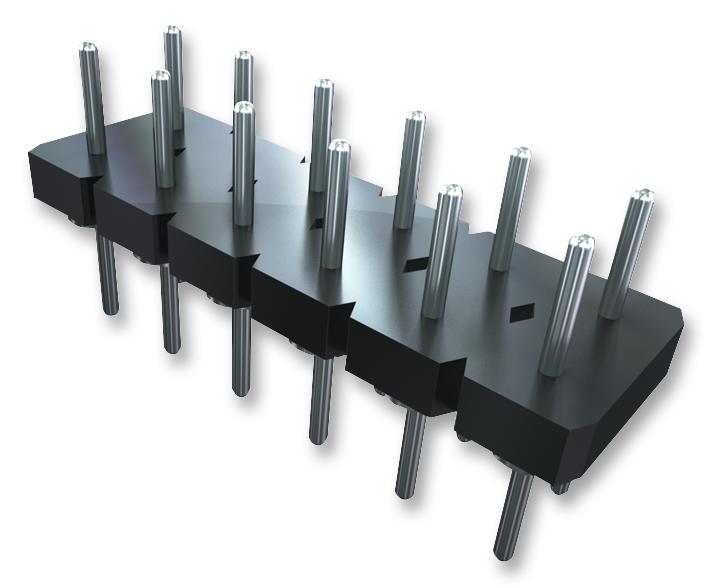

SAMTEC BDL104GF Board Stacking Strip Connector
The SAMTEC BDL series is a line of machined board stacking strips designed to provide a low-profile, reliable connection between circuit boards. These connectors offer the flexibility of a separable connection while maintaining the approach to the reliability of a permanent connection. Constructed with materials like black glass-filled polyester or high-temperature nylon, and available with various plating options (gold or tin over nickel), the BDL series caters to a wide range of industrial applications. They are RoHS compliant and suitable for both wave and reflow soldering processes, making them a versatile choice for electronic assembly.
SAMTEC BDL104GF Board Stacking Strip Connector Specifications:
- Material: Black Glass Filled Polyester (BBS, BBD, BBL) / Black High Temp Nylon (BDL)
- Temperature Range: -55°C to +125°C
- Terminal Material: Phosphor Bronze or Brass
- Plating: Au or Sn over 50µ" Ni
- RoHS Compliant: Yes
- Board Spacing: achieves (3,89 mm) .153" board spacings
- Mates With: SS, SD, HSS, SL, SDL
- Plating Lead: 20 µ" (0,51 µm) –GGold
- Tin Plating: TYP (1,27).050 –T=Tin
- High Temp: BHS BBL
- Standard Single Row: (2,54).100
- Standard Double Row: (5,08).200
- Low Profile Single Row: (2,54).100
- Low Profile Double Row: BDL
- No. of Positions: 01 thru 36 (BBD, BDL & BHS)
Buy the BDL-104-G-F SAMTEC Board Stacking Strip Connector | myMectronic
Securely purchase the SAMTEC BDL-104-G-F Board Stacking Strip Connector for your project today.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC BDL104GF?
You can click on the BUY or RFQ button to purchase BDL104GF from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BDL104GF?
You can download the BDL104GF datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BDL104GF?
SAMTEC
