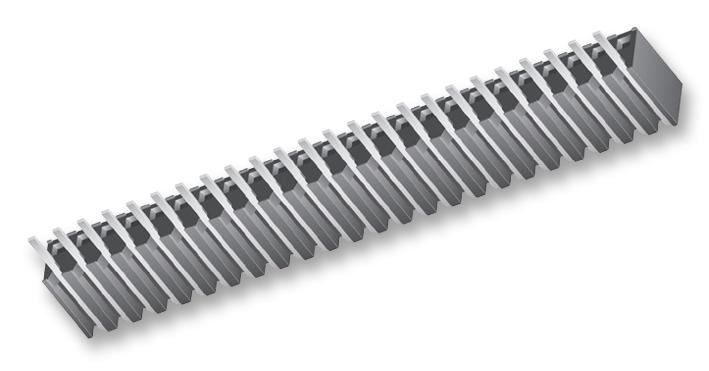

SAMTEC BSW10204SS bottom entry socket strips
The BSW series from Samtec consists of Tiger Buy bottom entry socket strips designed for through-hole mounting with a 0.025 inch (0.635 mm) square post. They are compatible with several Samtec connector series including TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT. Available in standard and low insertion force contacts, these connectors feature solder tails and can be mounted on the underside of a PCB for an ultra-low profile setup. Options include single row, multiple plug spaces, extended plug spaces, and dual row configurations (-S, -E, -M, -D). They have a pitch of 2.54 mm, support vertical orientation, and are suitable for soldering and plugging from the same side. Made from black thermoplastic insulator material with phosphor bronze contacts, they operate effectively within a temperature range of -55°C to 125°C with 30 µin gold-plated contacts. The contact resistance is approximately 10 milliohms. These socket strips meet UL E111594 and CSA 090871 standards, and feature options for standoff height for both single and double row assemblies. Designed for industrial applications.
SAMTEC BSW10204SS bottom entry socket strips Specifications:
- Material: Black thermoplastic insulator
- Contact Material: Phosphor bronze
- Plating: Au over 50 µin Nickel
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Withstanding Voltage: 1000 VRMS
- Contact Resistance: 10 milliohms
- Insulation Resistance: 5000 MΩ minimum
- Pitch: 2.54 mm
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: 8 oz standard, 3 oz low-force
- Withdrawal Force: 8 oz standard, 3 oz low-force
- Standards: UL E111594, CSA 090871
- Options: Single row, dual row, extended spaces, standoff heights
