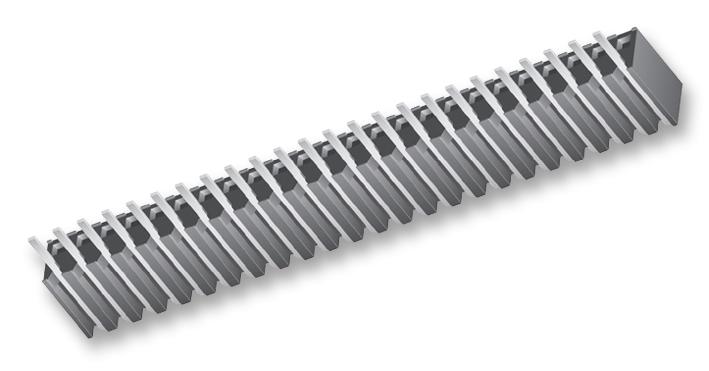

SAMTEC BSW10304SS Bottom Mount Socket

The BSW series from Samtec features Tiger Buy bottom-entry socket strips designed for through-hole mounting, suitable for high-density, low-profile applications. They accommodate a 0.025-inch square post, support soldering and plug-in from the same side, and feature options for single or dual-row configurations with standard or low insertion-force contacts. Made with black thermoplastic insulators, phosphor bronze contacts, and gold or tin plating, these connectors operate between -55°C and +125°C, withstanding voltages up to 1000 VRMS. They meet UL and CSA standards, offering reliable connections for industrial electronics and PCB applications.

View BSW10304SSDatasheet [pdf]

Buy the Samtec Series BSW Socket: BSW10304SS

Enhance your electronic assemblies with the Samtec BSW series bottom mount socket strips, offering high-density PCB connections with a pitch of 2.54mm. Designed for ease of soldering and plug-in from the same side, these connectors feature robust phosphor bronze contacts with gold or tin plating, supporting high-temperature soldering up to 125°C. They are suitable for low-profile, industrial applications, and meet UL and CSA safety standards. Choose from various configurations like single or dual-row, with standard or low insertion force options to optimize your device reliability and performance.

Order your Samtec Series BSW10304SS bottom mount socket strip today and ensure reliable, high-density connections for your PCB assembly projects.
