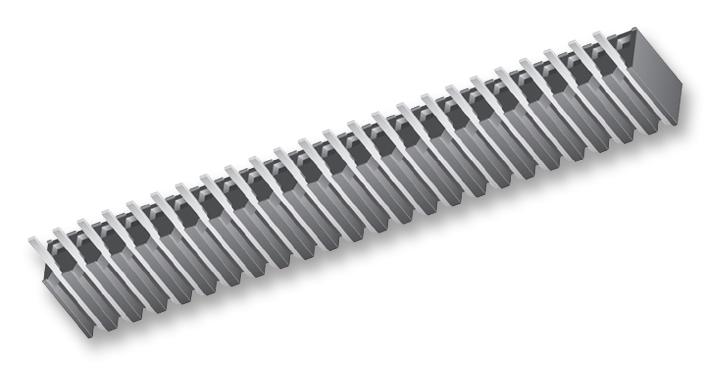

SAMTEC BSW11104SS Bottom Mount Socket Strip
The SAMTEC BSW series bottom mount socket strips are designed for robust connections and are ideal for applications requiring soldering and plugging from the side of the board. These strips accept .025" SQ terminals and offer a combination of features including gold and matte tin plating options, standoff configurations, and varying plug space options. They are suitable for low profile connections and high-temperature soldering, making them a versatile choice for a range of industrial applications. The insulator material is black thermoplastic with insulation resistance of 5000 MΩ min and contact material is Phosphor Bronze.
SAMTEC BSW11104SS Bottom Mount Socket Strip Specifications:
- Mates with: TSW, MTSW, HTSW, BSW
- Material: Black Thermoplastic
- Insulation Resistance: 5000 MΩ min
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50µ" Ni
- Operating Temp Range: -55°C to +125°C (with Gold), -55°C to +105°C (with Tin)
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Insertion Force (Standard): 8 oz (2.23 N) avg. (Single contact only)
- Insertion Force (Low): 3 oz (0.83 N) avg. (Single contact only)
- Withdrawal Force (Standard): 8 oz (2.23 N) avg. (Single contact only)
- Withdrawal Force (Low): 3 oz (0.83 N) avg. (Single contact only)
