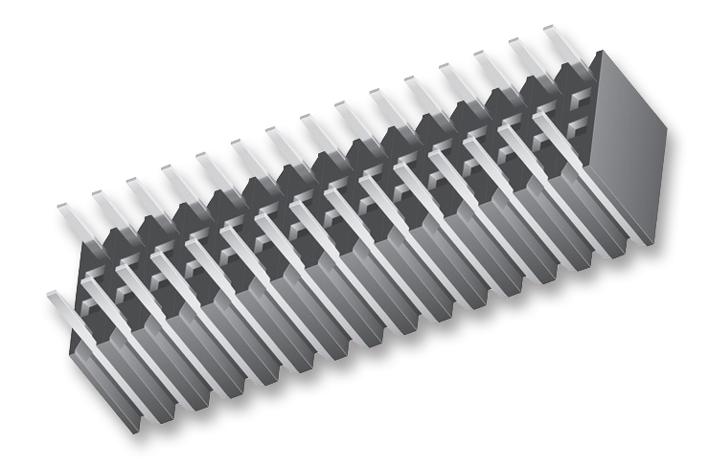

SAMTEC BSW11504TD Bottom Mount Socket Strip
The BSW series from Samtec comprises Tiger Buy bottom entry socket strip connectors with a 2.54mm pitch, designed for through-hole PCB mounting. These connectors feature 0.025-inch square posts compatible with several Samtec series, offering standard and low insertion force options. They support configurations from 2 to 36 contacts per row, designed for low-profile applications and high-temperature soldering. Made with a black thermoplastic insulator and phosphor bronze contacts with gold or tin plating, they operate from -55°C to 105°C, with a contact resistance of 10 milliohms. Suitable for soldering and plugging from the same side of the board, they are ideal for industrial, electronics, and manufacturing applications, certified under UL and CSA standards.
SAMTEC BSW11504TD Bottom Mount Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50um Ni
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: 8 oz (standard), 3 oz (low force)
- Withdrawal Force: 8 oz (standard), 3 oz (low force)
- Certifications: UL E111594, CSA 090871
- Number of Contacts: 2 to 36 per row, configurable
- Pitch: 2.54 mm
- Application: Low-profile PCB connections, high-temp soldering, industrial electronic assembly
- Mounting Type: Bottom mount, through-hole
- Row Options: Single and double row with standoff variations
Buy the Samtec Series BSW: Bottom Mount Socket Strip Connectors - Part 11504TD
Enhance your electronic assembly with the Samtec Series BSW bottom mount socket strip connectors. Offering a 2.54mm pitch, these connectors feature durable phosphor bronze contacts with gold or tin plating. They support both standard and low insertion forces suitable for soldering or plugging from the same side of the PCB. Certified for safety and high-temperature operation, they are ideal for industrial, manufacturing, and electronic applications. Order online today to ensure your projects benefit from dependable, high-performance connection solutions with fast delivery and expert support.
Order your Samtec Series BSW 11504TD bottom mount socket strip connectors today and enhance your PCB connections with reliable, high-quality components designed for industrial use.
