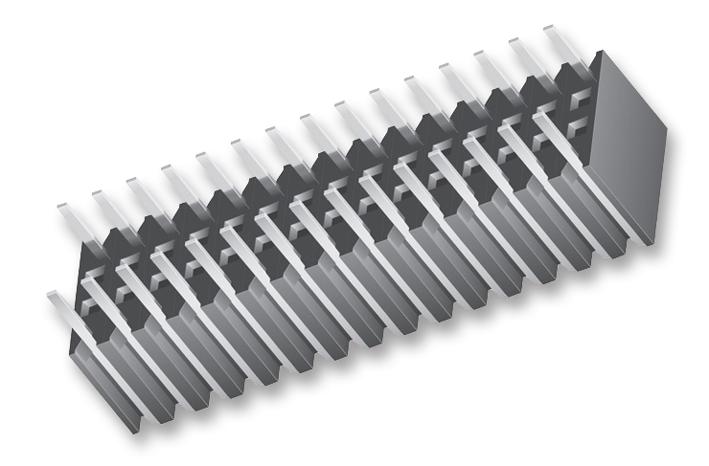

SAMTEC BSW11804SD Bottom Mount Socket Strip
The BSW series from Samtec are bottom entry socket strips designed as Tiger Buy components. These through-hole connectors feature 0.025-inch (0.635mm) square posts and are compatible with Samtec TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT series connectors. The series offers both standard and low insertion force contacts, with solder tails mounted on the underside of the PCB for an ultra-low profile. Available in single row, multiple plug space, extended plug space, and dual-row configurations (-S, -E, -M, -D), with a pitch of 2.54mm. Suitable for soldering and plugging from the same side of the board, these connectors provide low-profile connections and are capable of high-temperature soldering. They feature a black thermoplastic insulator, phosphor bronze contacts, and operate within -55°C to 125°C temperature range with 30µ” gold plating. Contact resistance is 10 milliohms, meeting UL and CSA standards. Optional standoff configurations support various industrial applications, ensuring durability and reliable connections in compact electronic assemblies.
SAMTEC BSW11804SD Bottom Mount Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Insertion Depth: 0.145" to 0.250" (3.68mm to 6.35mm)
- Insertion Force: Standard 8 oz (2.23 N), Low Insertion Force 3 oz (0.83 N)
- Withdrawal Force: Same as insertion force
- Dimensions vary by model including pitch 2.54mm, options for single or dual row, and standoff variations
- Compliance: UL E111594, CSA 090871
- Compatible with multiple Samtec connector series
