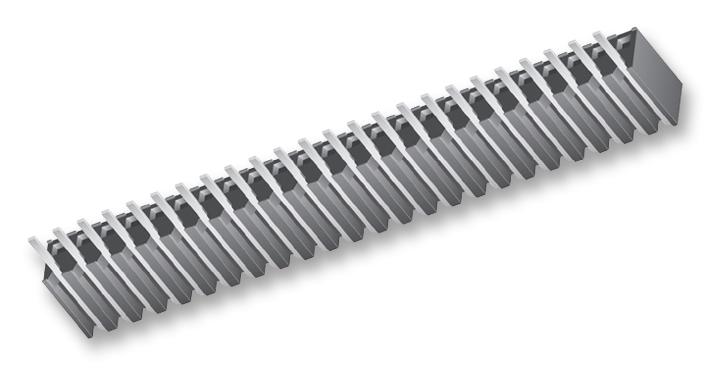

SAMTEC BSW12204SS Bottom Entry Socket Strip
The BSW series from Samtec includes bottom entry socket strips with through-hole design, featuring 0.025-inch square posts compatible with multiple Samtec connector series. These connectors are suitable for low-profile applications, with options for soldering and mating from the same side of the PCB, including standard and low insertion force variants. Made of black thermoplastic and phosphor bronze with gold or tin plating, they operate from -55°C to +125°C, with a contact resistance of 10 milliohms. Suitable for industrial, electronic, and high-temperature soldering applications, they support various standoff heights and configurations for versatile mounting.
SAMTEC BSW12204SS Bottom Entry Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27 um) Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: Standard 8 oz (2.23 N), Low Insertion Force 3 oz
- Withdrawal Force: Standard 8 oz (2.23 N), Low Force 3 oz (0.83 N)
- Mounting: Bottom entry, PCB mount
- Connector Series Compatibility: TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, PHT
- Design: Single and dual row options with various standoff heights
