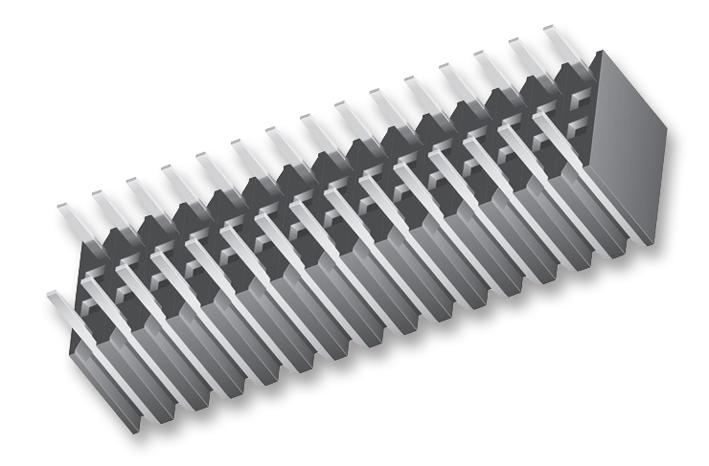

SAMTEC BSW12304TD Socket Strip
The BSW series from Samtec features Tiger Buy bottom entry socket strips designed for through-hole mounting on PCBs. These connectors have 0.025 inch (0.635 mm) square posts compatible with Samtec's TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT series. They offer standard and low insertion force options, with solder tails for mounting on the underside of the PCB, providing a low-profile, high-temperature soldering solution. Available in single and dual row configurations, they support 2 to 36 contacts per row with a pitch of 2.54 mm, ideal for soldering and plugging from the same side in industrial and electronic applications, ensuring reliable connections despite high-temperature conditions and demanding operational environments.
SAMTEC BSW12304TD Socket Strip Specifications:
- Connector series: BSW
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50μ" Ni (1.27 μm)
- Insulator Material: Black Thermoplastic
- Insulation Resistance: 5000 MQ min
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm (.145") to 6.35 mm (.250")
- Insertion Force: Standard 8 oz (2.23 N), Low 3 oz (0.83 N)
- Withdrawal Force: Standard 8 oz (2.23 N), Low 3 oz (0.83 N)
- Certifications: UL E111594, CSA 090871
- Suitable for high-temperature soldering and high-low profile applications
- Supports 2-36 contacts per row, single or dual row configurations
- Designed for PCB mounting with bottom entry, with various standoff options
Buy the Samtec BSW12304TD – Reliable Connector for Industrial Applications
Purchase your Samtec BSW series socket strip now to ensure reliable PCB connections with high-temperature soldering capabilities. These low-profile, bottom entry connectors support 2 to 36 contacts per row and are ideal for industrial, electronic, and manufacturing applications. With a 2.54 mm pitch, durable phosphor bronze contacts, and gold or tin plating, they offer excellent electrical characteristics. Easy to solder and plug from the same side, they are perfect for demanding environments. Buy online today for fast delivery and trusted quality for your projects.
Order your Samtec Series BSW12304TD socket strip today and get a dependable, high-temperature PCB connection solution for your industrial projects.
