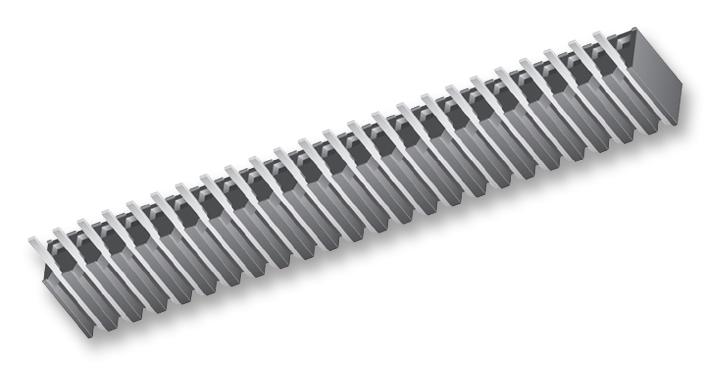

SAMTEC BSW12504TS Socket Strip
The BSW series from Samtec features Tiger Buy bottom entry socket strips designed for reliable PCB connections. These through-hole connectors have a 0.025-inch (0.635mm) square post and are compatible with several Samtec series, including TSW, MTSW, HTSW, and PHT. The connectors come in single and dual row configurations, offering standard or low insertion force options, with a 2.54mm pitch. Made from black thermoplastic with phosphor bronze contacts, they operate from -55°C to 105°C, meeting UL E111594 and CSA 090871 standards. Suitable for industrial low-profile connections, high-temperature soldering, and plug-in applications on PCB boards.
SAMTEC BSW12504TS Socket Strip Specifications:
- Insulator Material: Black thermoplastic
- Contact Material: Phosphor bronze
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS at 60Hz
- Contact Resistance: 10 milliohms
- Insertion Depth: 0.145" to 0.250" (3.68mm to 6.35mm)
- Insertion Force: Standard 8 oz (2.23 N), Low 3 oz (0.83 N)
- Withdrawal Force: Same as insertion force
- Pitch: 2.54mm
- Current Rating: Varies based on configuration
- Standards: UL E111594, CSA 090871
Buy the Samtec Series BSW Socket Strips: BSW12504TS
Purchase the Samtec BSW series socket strip online today for high-reliability PCB connections. These bottom entry connectors are built with durable thermoplastic insulators and phosphor bronze contacts, providing excellent performance from -55°C to 105°C. Perfect for low-profile, high-temperature soldering, and plug-in applications, with standard or low insertion force options. Featuring a 2.54mm pitch, suitable for various industrial and electronic assembly needs. Order now to ensure secure, cost-effective, and efficient PCB connection solutions with quick online delivery and expert support.
Get Samtec BSW12504TS today—designed for reliable PCB connections and high-temperature soldering applications.
Frequently Asked Questions
Where can I buy SAMTEC BSW12504TS?
You can click on the BUY or RFQ button to purchase BSW12504TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BSW12504TS?
You can download the BSW12504TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BSW12504TS?
SAMTEC
