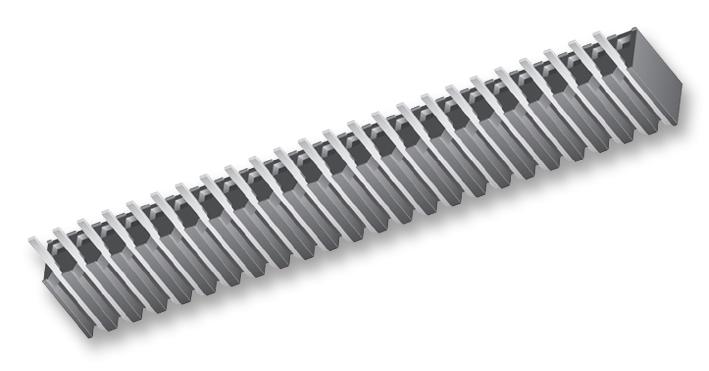

SAMTEC BSW12604TS Socket Strip
The BSW series from Samtec features bottom entry socket strips designed for through-hole mounting and low-profile connections. Featuring 0.025 inch square posts compatible with multiple Samtec series, these connectors support soldering and plugging from the same side of the board. Made of black thermoplastic insulator and phosphor bronze contacts with gold or tin plating, they operate within -55°C to +125°C. Available in single and dual-row configurations with standoff options, they are suitable for industrial applications requiring reliable, high-temperature, and low-resistance connections in a variety of electronic and manufacturing systems.
SAMTEC BSW12604TS Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: Standard = 8 oz (2.23 N) avg., Low = 3 oz (0.83 N)
- Withdrawal Force: Standard = 8 oz (2.23 N) avg., Low = 3 oz (0.83 N)
- Pitch: 2.54 mm
- Number of Contacts: 2 to 36 per row
- Configurations: Single and dual row, standoff options available
- Standards Compliance: UL E111594, CSA 090871
- Mounting: Bottom entry, through-hole
- Application: Industrial electronic connections, PCB mounting, soldering and plugging
- Feature: Low-profile design, high-temperature tolerance
Buy the Samtec Series BSW Socket Strips: BSW12604TS
Purchase the Samtec BSW series socket strip online today for dependable, high-quality PCB connections. These low-profile, bottom entry connectors with 2.54mm pitch support soldering and plugging from the same side of the board. Made of durable thermoplastic and phosphor bronze, they withstand operating temperatures from -55°C to +125°C. With options for single or dual rows and various standoff configurations, these connectors are ideal for industrial electronics, ensuring secure, low-resistance connections for complex systems and assembly lines.
Get Samtec BSW12604TS today—built for reliable, high-temperature, low-profile connections suitable for industrial and manufacturing applications.
Frequently Asked Questions
Where can I buy SAMTEC BSW12604TS?
You can click on the BUY or RFQ button to purchase BSW12604TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BSW12604TS?
You can download the BSW12604TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BSW12604TS?
SAMTEC
