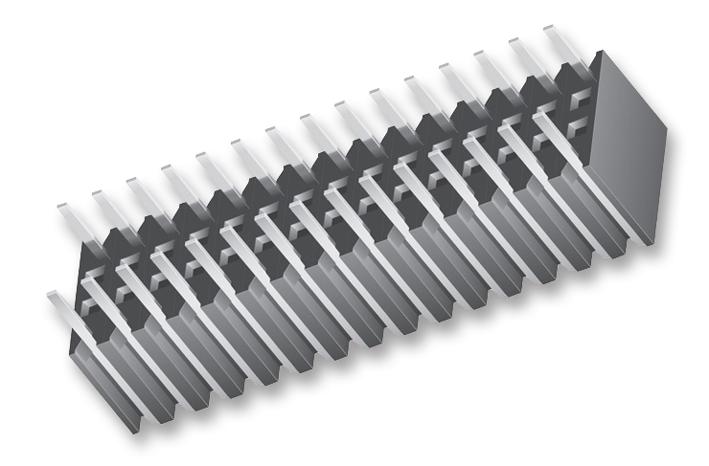

SAMTEC BSW13024SD Socket Strip
The BSW series from Samtec features Tiger Buy bottom entry socket strips designed for through-hole mounting. These connectors utilize 0.025-inch (0.635mm) square posts, compatible with various Samtec series like TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT. They are suitable for soldering and plugging from the same PCB side, ideal for low-profile and high-temperature applications. Made of black thermoplastic with phosphor bronze contacts, they operate between -55°C and +125°C, with gold-plated contacts offering 10 milliohms contact resistance. They meet UL and CSA standards, supporting different configurations with standoff options for versatile mounting solutions.
SAMTEC BSW13024SD Socket Strip Specifications:
- Pitch: 2.54 mm
- Post Size: 0.025 inches (0.635 mm) square
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold over 50μ
- Ni
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 milliohms
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: 8 oz (2.23 N) standard, 3 oz (0.83 N) low force
- Withdrawal Force: 8 oz (2.23 N) standard, 3 oz (0.83 N) low force
- Standards: UL E111594, CSA 090871
- Mounting: Through-hole for PCB
- Application: Suitable for low-profile, high-temperature soldering, vertical PCB connection
- Configuration: Single row, dual row, various spacing options, standoff positions
- Certifications: UL, CSA
- Design: Slight variations possible; check latest datasheet
Buy the Buy Samtec BSW Series Part Number BSW13024SD Online
Order the Samtec BSW series bottom mount socket strips online today and enjoy fast delivery. Designed for high-temperature soldering and low-profile PCB applications, these connectors feature 2.54mm pitch, gold-plated contacts, and versatile configurations including single and dual rows. They provide excellent electrical performance with a contact resistance of 10 milliohms and withstand temperatures from -55°C to 125°C. Thanks to their robust insulator and contact materials, they are ideal for demanding environments where reliability and ease of assembly are critical.
Buy Samtec BSW13024SD now and experience reliable, low-profile PCB connections with high-temperature tolerance and versatile mounting options.
