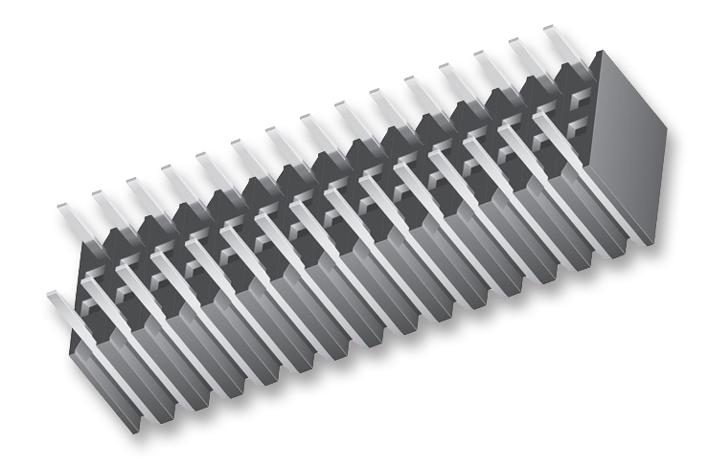

SAMTEC BSW13204TD Socket Strip
The BSW series from Samtec features Tiger Buy bottom entry socket strips designed for through-hole mounting. These socket strips have 0.025 inch (0.635 mm) square posts and are compatible with various Samtec connector series such as TSW, MTSW, HTSW, MTLW, TSM, EW, ZW, HW, DW, and PHT. Available in standard and low insertion force options, these connectors include standard solder tails and mount on the underside of the PCB for an ultra-low profile application. They offer configurations such as single row, multiple plug spaces, extended plug spaces, and dual row options, with a pitch spacing of 2.54 mm. They are suitable for soldering and plugging from the same side of the board, providing low profile connections and high-temperature soldering capabilities. Constructed with black thermoplastic insulators and phosphor bronze contacts, they operate efficiently within a temperature range of -55°C to 105°C, with a contact resistance of 10 milliohms. These socket strips comply with UL E111594 and CSA 090871 standards, and include standoff options for both single and double rows. Ideal for industrial applications.
SAMTEC BSW13204TD Socket Strip Specifications:
- Insulator Material: Black Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: Standard 8 oz (2.23 N), Low Force 3 oz (0.83 N)
- Withdrawal Force: Same as insertion force
- Dimensions vary by configuration, pitch spacing 2.54 mm
- Standards: UL Listed, CSA Certified
- Configuration options include single row, dual row, extended, with standoff options
