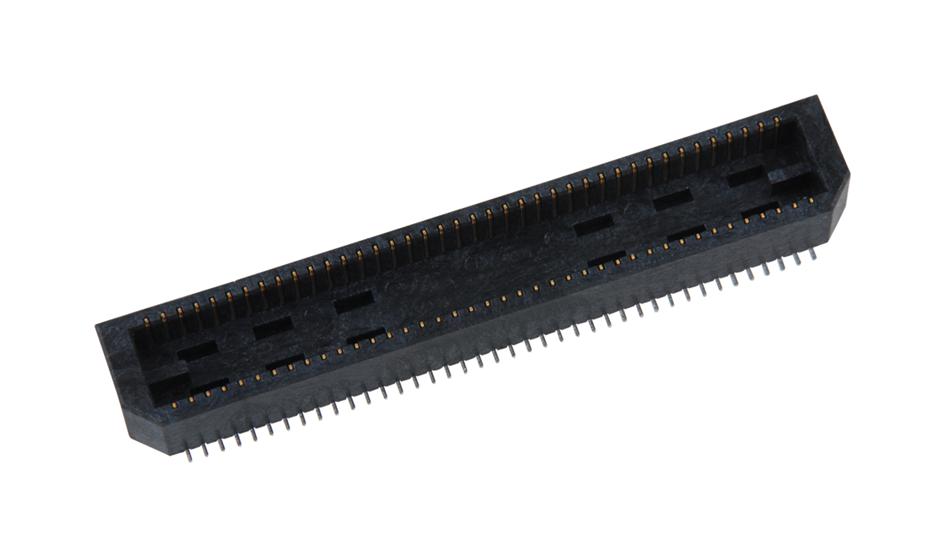

SAMTEC BTE04005LDA Edge Mount Connector
This versatile edge mount connector features a liquid crystal polymer insulator and phosphor bronze contacts with optional gold or tin plating. Designed for PCB applications, it supports up to 80 positions with operating temperatures from -55°C to +125°C and a maximum voltage rating of 225 VAC. It offers a maximum of 1550 cycles, RoHS compliance, and lead-free solderability. Its various stack height options (11mm to 30mm) and friction lock ensure secure connections, ideal for electronics requiring reliable, high-density, power, or signal connections in a compact form.
SAMTEC BTE04005LDA Edge Mount Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Gold (10 p" on contact), Tin, or Nickel
- Number of Positions: Up to 80 positions per connector
- Max Cycles: 1550
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 225 VAC
- Stack Height Options: 11 mm, 14 mm, 16.10 mm, 19.10 mm, 22 mm, 25 mm, 30 mm
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Board Stacking: Up to 2 connectors per board, maximum 80 positions
- Contact Resistance: Low contact resistance with gold and tin plating options
- Dimensions: Contact width 0.80 mm, length varies by option
Buy the Buy Samtec BTE04005LDA Part Number BTE04005LDA Online
Secure your electronics with the high-reliability edge mount connector, featuring a liquid crystal polymer insulator, phosphor bronze contacts, and optional gold or tin plating. Supports up to 80 positions with various stack heights from 11 mm to 30 mm, accommodating even the most compact designs. Designed for PCB applications, it offers RoHS compliance, lead-free solderability, and a maximum of 1550 cycles for durable, long-lasting performance. Choose this connector for reliable, high-density signal and power connections in your electronic systems.
Get Samtec BTE04005LDA today—designed for high-density power and signal connections with robust stack height options.
Frequently Asked Questions
Where can I buy SAMTEC BTE04005LDA?
You can click on the BUY or RFQ button to purchase BTE04005LDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part BTE04005LDA?
You can download the BTE04005LDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of BTE04005LDA?
SAMTEC
